Single-stage compression faces strict thermodynamic limits. As pressure ratios increase, discharge temperatures spike rapidly. This leads to exponential drops in volumetric efficiency and severe mechanical stress on internal components. Facilities requiring high-pressure gas or ultra-low temperature refrigeration often suffer from excessive energy consumption. They also face frequent valve failures, blown head gaskets, and lubricant breakdown when pushing single-stage systems beyond their optimal design parameters.
Introducing an intercooler between compression stages fundamentally alters the thermodynamic cycle. Removing heat mid-cycle protects internal components and reduces the total mechanical work required by the motor. This guide breaks down how interstage cooling functions within a double stage reciprocating compressor. We evaluate the mechanical benefits, operational trade-offs, and criteria for specifying these systems in heavy industrial applications, ensuring you can design a system that runs reliably under demanding conditions.
Thermodynamic Optimization: Interstage cooling removes sensible heat between the low-pressure (LP) and high-pressure (HP) stages, pushing the process closer to ideal isothermal compression and significantly reducing total brake horsepower requirements.
Mechanical Longevity: By lowering the inlet temperature of the HP stage, intercooling prevents discharge temperatures from exceeding the thermal degradation limits of lubricating oils and internal sealing components.
Volumetric Efficiency: Splitting the pressure ratio across two stages minimizes the expansion of clearance volume gas, allowing the compressor to move more mass per stroke.
Application Specificity: The added capital expenditure of intercooled two-stage systems is justified primarily in high-compression-ratio scenarios, such as heavy industrial air systems or low temperature reciprocating compressor applications.
Understanding the physical flow of gas through a multi-stage system is essential for proper operation and troubleshooting. The baseline architecture of a two-stage unit relies on sequential compression separated by active heat exchange. Gas enters the suction inlet and fills the low-pressure (LP) cylinder. The LP piston compresses this gas to an intermediate pressure. This initial compression generates significant heat, often pushing the gas temperature well above 250°F depending on the specific heat ratio of the gas. The hot gas then discharges from the LP cylinder and flows directly into the intercooler heat exchanger.
The intercooler serves as the critical bridge between stages. Whether air-cooled with a forced-draft fan or water-cooled via a shell-and-tube heat exchanger, its primary function is reducing the gas temperature back down to near-ambient conditions. Cooling the gas increases its density and reduces its specific volume. Dense, cooled gas then enters the high-pressure (HP) cylinder. The HP piston compresses this dense gas to the final discharge pressure. Without the intercooler, the HP cylinder would intake hot, expanded gas, drastically reducing system efficiency and causing the final discharge temperature to exceed the melting point of standard synthetic seals.
Moisture separation represents a critical secondary function of the intercooler. Cooling compressed air or process gas forces water vapor and heavy hydrocarbons to condense out of the gas stream. Intercoolers feature integrated moisture separators and mechanical traps. These components capture and drain condensed liquids automatically. Removing liquid prevents catastrophic hydraulic slugging in the HP stage, which can easily bend connecting rods or shatter reed valves. It also ensures high-purity compressed gas reaches downstream equipment.
This architecture scales effectively for heavy industrial demand. Facilities rely on this design when specifying a high capacity reciprocating compressor. It allows for massive mass flow rates at elevated pressures. Operators avoid catastrophic thermal limits while maintaining continuous production cycles in refineries, chemical plants, and large-scale manufacturing facilities.
Interstage cooling drives the compression cycle closer to ideal isothermal compression. On a pressure-volume (P-V) diagram, adiabatic (isentropic) compression follows a steep curve. Isothermal compression follows a shallower curve, requiring less total work. Intercooling breaks the adiabatic curve into two smaller steps. The cooling process shifts the starting point of the second stage to the left on the P-V diagram. The shaded area between the single-stage adiabatic curve and the two-stage curve represents direct power savings at the motor shaft.
Cooling the gas reduces its physical volume. The HP stage requires significantly less mechanical work (kW/CFM or kW/TR) to reach the final discharge pressure. Moving dense gas takes less energy than moving hot, expanded gas. This fundamental thermodynamic principle yields substantial energy savings over the equipment lifecycle, directly lowering the amperage draw on the main drive motor.
Engineers calculate the theoretical optimal interstage pressure to minimize compression work. The optimal interstage pressure equals the geometric mean of suction and discharge pressures. However, real-world applications require adjustments. Engineers must account for the actual pressure drop across the intercooler piping and fins. Balancing this pressure drop against cooling efficiency determines the final stage ratio design. If the intercooler is undersized, the pressure drop will negate the horsepower savings gained from cooling the gas.
Clearance volume severely impacts compressor performance at high pressure ratios. Pistons cannot touch the cylinder head; a small pocket of gas always remains trapped at the top of the stroke to prevent mechanical collision. In a single-stage system, high discharge pressure forces this trapped gas to re-expand deeply into the suction stroke. This re-expansion blocks new suction gas from entering the cylinder until the internal pressure drops below the suction line pressure.
A multi-stage system divides the total pressure ratio across multiple cylinders. A 9:1 total ratio becomes two distinct 3:1 ratios. Lowering the pressure ratio in each cylinder drastically reduces clearance expansion penalties. The trapped gas re-expands less, allowing the intake valve to open sooner in the stroke. Both the LP and HP cylinders draw in more fresh gas per stroke, maximizing the physical displacement of the machine.
Reducing the pressure differential across each individual stage limits internal gas leakage. High pressure differentials force gas past piston rings and closed valves. This blow-by wastes energy and reduces capacity. Lower stage ratios minimize this leakage, maximizing the net volumetric throughput of the machine and reducing wear on the compression rings.
Standard compressor oils degrade rapidly at extreme temperatures. Viscosity breaks down, and oil begins to varnish or carbonize above 150°C (300°F). Single-stage compression to high pressures easily exceeds these limits. Intercooling prevents the HP discharge from reaching dangerous thermal thresholds. Clean, stable oil ensures proper lubrication of cylinder walls, wrist pins, and main bearings.
Thermal fatigue destroys internal compressor components. Reed valves, ring valves, piston rings, and rod packings fail prematurely under extreme heat. Lowering operating temperatures extends maintenance intervals. Mechanics spend less time replacing warped valves and brittle seals, keeping the machine online longer.
Process gases often react poorly to high temperatures. Keeping temperatures low prevents thermal cracking or polymerization of reactive gases. It also protects downstream receivers, filters, and piping from excessive thermal expansion stress. Cooler discharge gas prevents downstream pipe warping, gasket failures, and the degradation of coalescing filter elements.
Industrial safety standards mandate strict maximum allowable discharge temperatures. High temperatures in compressed air systems create severe auto-ignition risks. Oil carryover combined with extreme heat can cause catastrophic receiver fires. Intercooling mitigates these risks and ensures compliance with facility safety regulations.
Industrial freezing demands specialized equipment. Ammonia or CO2 systems operating at -40°C (-40°F) or lower require massive pressure lifts from the evaporator to the condenser. Single-stage compressors cannot handle these extreme lifts without overheating and suffering severe capacity loss. A low temperature reciprocating compressor relies entirely on two-stage architecture to function reliably in blast freezing and cold storage applications.
Refrigeration systems utilize unique intercooling methods compared to standard air compressors. Interstage cooling often involves liquid injection or a dedicated flash tank. This interstage desuperheater cools the discharge gas of the LP stage by flashing a small amount of liquid refrigerant. It also subcools the liquid refrigerant feeding the main evaporator. Subcooled liquid provides significantly higher refrigeration capacity per pound of mass flow, boosting the overall system coefficient of performance (COP).

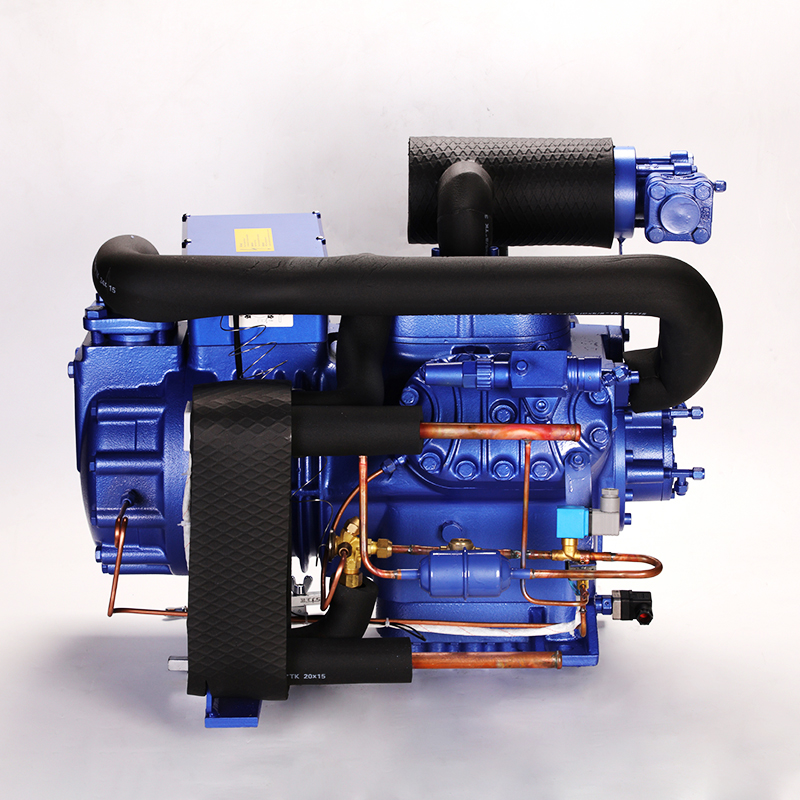

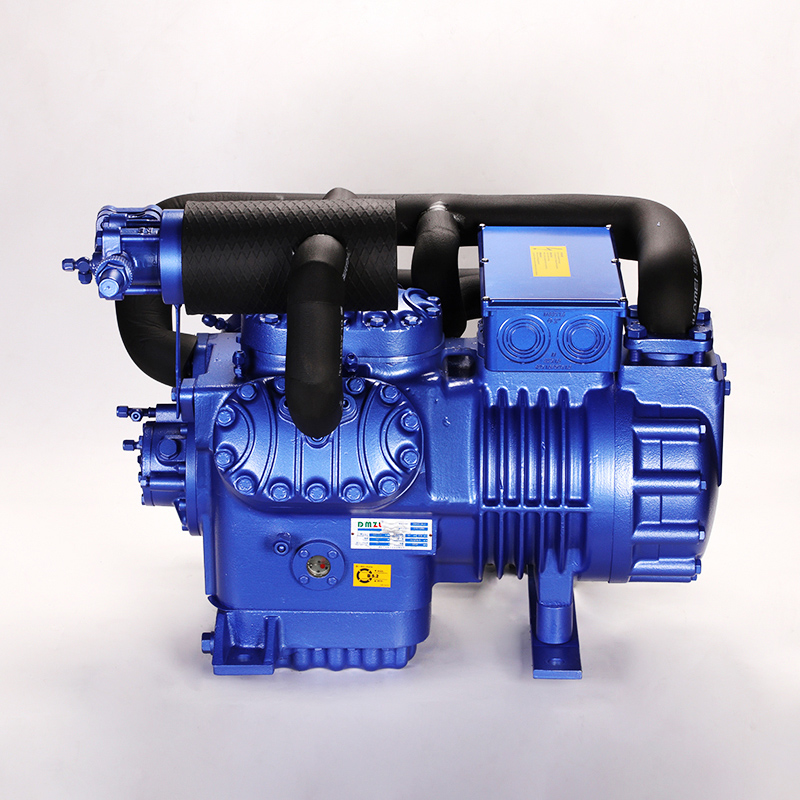

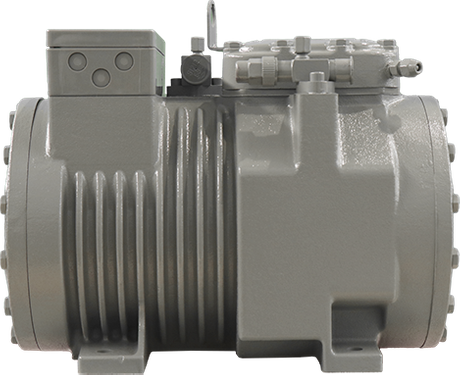

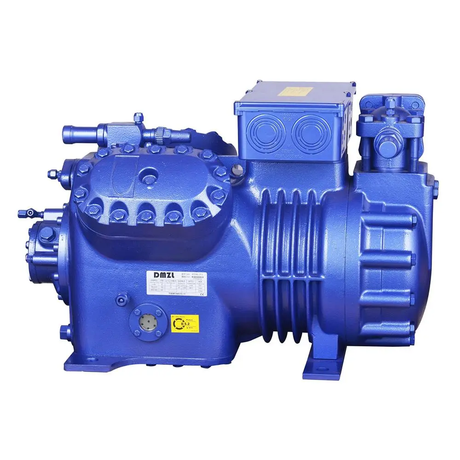

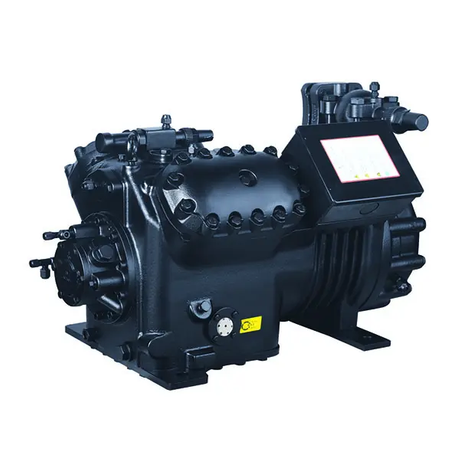

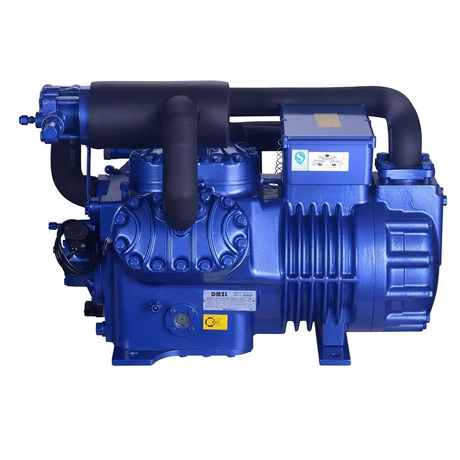

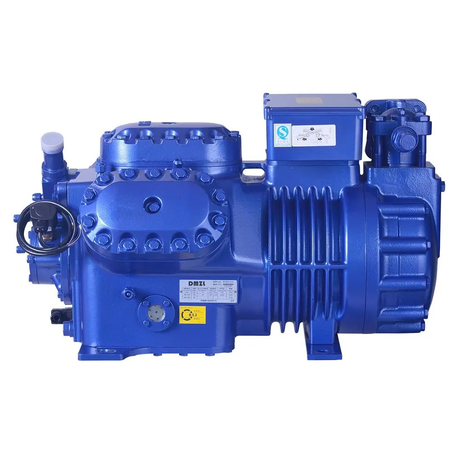

Commercial refrigeration and controlled environments frequently utilize semi-hermetic designs. Environmental test chambers, pharmaceutical cold storage, and supermarket racks require precise temperature control without the risk of refrigerant leaks. A double stage semi hermetic compressor encloses the motor and compressor within a single pressure vessel. This eliminates shaft seal leaks, making it ideal for critical environments where gas containment is mandatory.
Motor cooling presents a unique challenge in semi-hermetic designs. Suction gas typically cools the internal electric motor before entering the cylinders. Operating under high compression ratios or deep vacuums reduces the mass flow of cooling gas. Interstage cooling interacts with the motor cooling circuit to ensure windings do not overheat. Proper staging keeps the motor within safe thermal limits during continuous deep-freeze operation, preventing stator burnouts.
Two-stage systems require higher upfront capital expenditure. Buyers pay for extra cylinders, intercooler heat exchangers, interconnecting piping, and moisture separators. Complex control systems and additional vibration isolation add to the initial purchase price. Plant managers must justify this initial investment against long-term operational benefits and energy savings.
Lifecycle return on investment justifies the higher initial cost. Energy savings directly reduce monthly operating expenditures. Decreased mechanical stress reduces maintenance downtime and spare parts consumption over a 10-to-20-year lifecycle. Facilities operating continuously at high pressure ratios recover the initial premium rapidly through lower utility bills and fewer catastrophic breakdowns.
Proper intercooler sizing dictates system success. An undersized intercooler creates excessive pressure drop between stages. The HP cylinder must then work harder to pull gas through the restriction. This pressure drop penalty can completely negate the thermodynamic energy savings of two-stage compression. Engineers must specify heat exchangers with adequate flow area and minimal restriction.
Different cooling mediums require specific maintenance routines. Water-cooled intercoolers suffer from mineral scaling and internal corrosion. Operators must chemically clean the tubes periodically to maintain heat transfer efficiency. Air-cooled intercoolers depend heavily on ambient temperatures. Dust and debris foul the external fins. Mechanics must pressure-wash air-cooled fins regularly to maintain design approach temperatures.
Multi-stage compressors occupy a larger physical footprint. Intercoolers, pulsation dampeners, and heavy interconnecting piping require substantial floor space. Facility planners must allocate adequate room for maintenance access. Pulling intercooler tube bundles requires clear space around the compressor skid, which must be factored into the mechanical room layout.
Complex multi-stage reciprocating machinery generates distinct vibration harmonics. Heavy, unbalanced forces travel through the skid. Installations require robust structural foundations. Engineers specify isolated concrete inertia blocks to manage vibration and avoid structural fatigue in surrounding facility piping and building supports.
Industry standards define clear thresholds for transitioning from single to double stage compression. For standard industrial air, engineers mandate two stages when the compression ratio exceeds 5:1 or 6:1. In refrigeration, specific temperature lifts dictate the transition. Pushing a single-stage unit past these thresholds guarantees premature mechanical failure, carbonized oil, and wasted energy.
Analyzing the facility load profile is critical. Continuous, base-load operations easily justify the investment in intercooled systems. Intermittent, highly variable duty cycles may not accumulate enough run hours to achieve a fast payback. Engineers must profile the exact volumetric demand before specifying stage counts.
Selecting the right intercooler type depends entirely on site conditions. Water availability, ambient temperatures, and maintenance capabilities drive the decision. The table below outlines the primary selection criteria for industrial facilities.
Cooling Medium | Primary Advantage | Main Limitation | Ideal Application |
|---|---|---|---|
Air-Cooled | No utility water required; lower installation complexity. | Cooling efficiency drops severely in high ambient temperatures. | Remote sites, outdoor installations, areas with water scarcity. |
Water-Cooled | Superior heat transfer; tight approach temperatures. | Requires cooling towers, pumps, and water treatment. | Heavy industrial plants, indoor mechanical rooms, continuous duty. |
Effective condensate management protects the entire system. Intercoolers generate significant liquid volume as the gas cools below its dew point. Specifications must include automated, zero-loss drain valves. High-efficiency moisture separation is non-negotiable. It protects the HP stage from catastrophic liquid ingestion and maintains process reliability.
Maintaining a two-stage system requires strict adherence to mechanical protocols. Field technicians must monitor specific parameters to ensure the intercooler functions correctly.
Monitor interstage pressure daily to detect HP valve failures or intercooler blockages.
Record approach temperatures on the intercooler to identify fouling on the fins or tubes.
Test automated condensate drains weekly to ensure liquid does not carry over into the HP cylinder.
Sample compressor oil quarterly to check for thermal breakdown or moisture contamination.
Inspect LP and HP valves during scheduled shutdowns to catch fatigue before catastrophic failure.
Audit your current single-stage compressor discharge temperatures to identify thermal stress risks.
Calculate the exact pressure ratio of your process to determine if it exceeds the 6:1 single-stage safety threshold.
Perform a lifecycle energy analysis comparing the power consumption of single-stage versus two-stage options.
Evaluate your facility's cooling water capacity before specifying a water-cooled intercooler system.
A: The primary purpose is to remove sensible heat from the gas between compression stages. This lowers the gas temperature, increases its density, and reduces the mechanical work required by the high-pressure cylinder. It also prevents the final discharge temperature from exceeding safe mechanical limits.
A: Cooling the gas reduces its specific volume. The high-pressure piston pushes a denser, cooler gas rather than a hot, expanded gas. Moving less volume requires less brake horsepower, shifting the thermodynamic cycle closer to ideal isothermal compression and saving significant energy.
A: Industry standards generally dictate transitioning to a two-stage compressor when the total compression ratio exceeds 5:1 or 6:1. Operating a single-stage compressor beyond this ratio causes severe thermal stress, oil degradation, and drastic drops in volumetric efficiency.
A: If the intercooler fouls, heat transfer drops. The high-pressure stage ingests hot gas, leading to extreme final discharge temperatures. This causes lubricating oil to carbonize, damages internal valves, melts seals, and drastically increases the power consumption of the compressor.
A: Yes. They are specifically designed for ultra-low temperature applications like environmental testing and pharmaceutical storage. The two-stage design handles the massive pressure lifts required by low-temperature refrigerants without overheating the internal electric motor or compressor valves.
A: Cooling compressed gas forces water vapor and oil aerosols to condense into liquid. If this liquid enters the high-pressure cylinder, it causes hydraulic shock (slugging), which can shatter valves and bend connecting rods. Separators trap and drain this liquid safely.
