6WD/6WG
DMZL

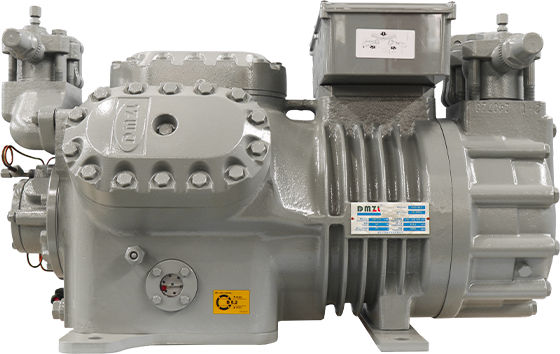

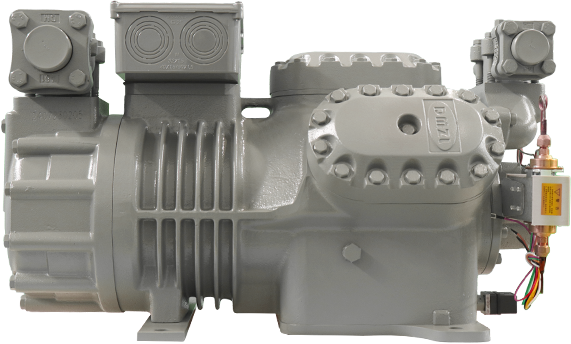

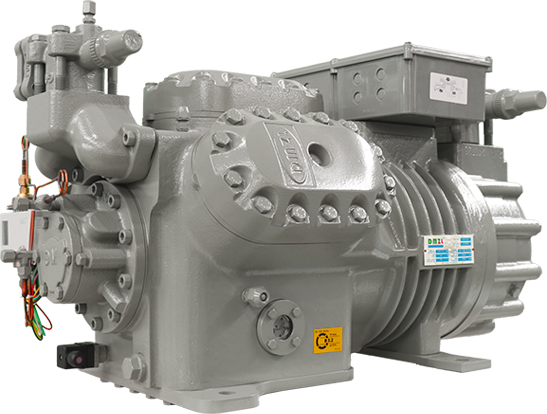

The 6SD/6SG Series is a heavy-duty compressor designed for industrial refrigeration systems, solving challenges like high cooling loads, extreme temperature fluctuations, and 24/7 operational demands. It delivers reliable performance in environments where downtime leads to significant financial losses (e.g., large cold storage, chemical plants).
• Large Cold Storage Facilities: Powers warehouses storing 1000+ tons of frozen food (e.g., meat, seafood), maintaining temperatures from -25℃ to -18℃. Its high displacement (110.5–151.6 m³/h@50Hz) supports large refrigeration loops, ensuring uniform cooling across the facility.
• Chemical & Pharmaceutical Manufacturing: Cools low-boiling-point chemicals (e.g., ammonia derivatives) and temperature-sensitive compounds. The robust cast iron construction resists chemical exposure, while precise temperature control prevents product degradation.
• Food Processing Plants: Provides continuous cooling for dairy, bakery, or seafood processing lines. It withstands frequent cleaning with industrial-grade sanitizers, complying with food safety standards (e.g., FDA, EU 10/2011).
• Optimized Piston Stroke: A 55mm piston stroke and balanced 6-cylinder configuration deliver steady refrigerant flow, reducing energy waste from uneven cooling. This design is critical for industrial systems that require consistent performance to avoid product spoilage or process disruptions.
• Forced-Lubrication System: Ensures continuous oil distribution to critical components (crankshaft, bearings, pistons) even under 24/7 operation. This extends part life by 30% compared to splash lubrication systems, reducing maintenance costs for industrial users.
• Thick Cast Iron Housing: The cylinder block and frame are constructed from thick-gauge cast iron, resisting thermal shock and mechanical stress. This material is ideal for environments with rapid temperature changes (e.g., freeze-thaw cycles in cold storage).
• High-Quality Internal Components: Precision-machined pistons with chrome-plated rings reduce friction and wear, while valve plates made from imported impact-resistant spring steel ensure reliable compression. These parts are tested to withstand 10,000+ hours of continuous use.
• High Pressure Tolerance: Designed to operate at pressures up to 3.5 MPa (508 psi), making it suitable for industrial systems that experience pressure spikes during startup or peak cooling demand.
• Large Oil Capacity: A 4.75L oil reservoir ensures consistent lubrication even in systems with long refrigerant lines, reducing the risk of oil starvation in large-scale installations.
As a 30+ year original equipment manufacturer (OEM), we offer tailored solutions for industrial clients:
• Dual-Power Motors: Custom motors compatible with 220-240V/380-420V or 440-480V power supplies, adapting to global industrial electrical standards.
• Refrigerant Customization: Modifications to support specialty refrigerants for unique applications (e.g., low-GWP options for EU-based clients).

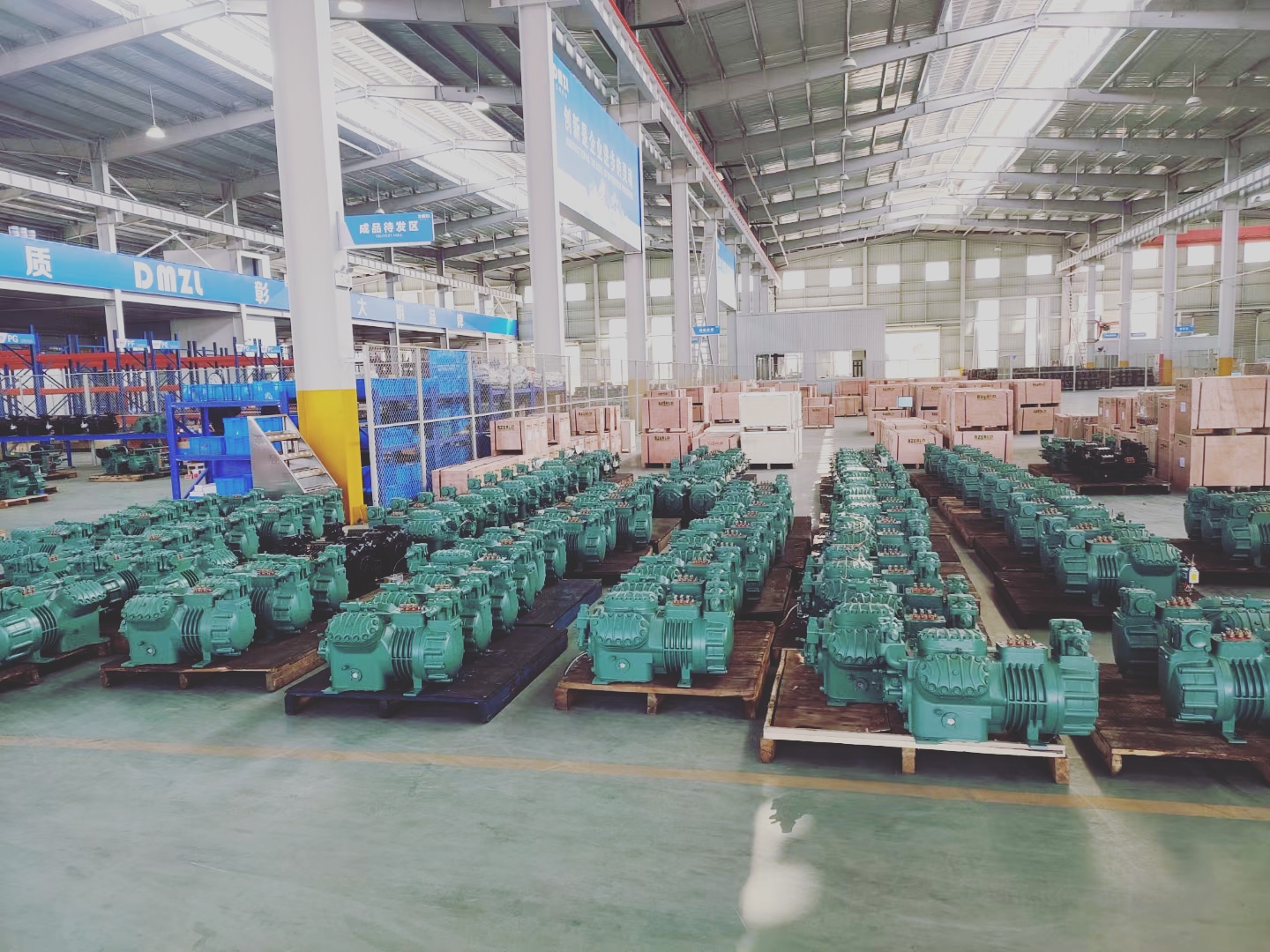

• Rigorous Production Standards: Manufactured in a 50,000㎡ factory equipped with CNC processing centers, ultrasonic cleaning machines, and advanced testing labs. Each compressor undergoes 10+ performance tests (pressure, temperature, noise) before delivery.
• ISO 9001 Certification: Complies with ISO 9001 quality management standards, ensuring consistent production quality for industrial clients with strict supplier requirements.
• 24/7 Emergency Hotline: A dedicated team of industrial refrigeration engineers provides real-time assistance for critical issues (e.g., compressor failure in cold storage), minimizing downtime.
• On-Site Service: Available for complex installations or repairs, with 48-hour response times for key clients (e.g., large food processors or pharmaceutical manufacturers).
• Extended Warranties: 2–5 year warranty options for industrial use, with coverage for parts, labor, and emergency service calls.
