Views: 0 Author: Site Editor Publish Time: 2026-08-19 Origin: Site
High discharge temperatures cause premature mechanical failure and oil degradation in low-temperature commercial and industrial refrigeration. Operating a system beyond safe thermal limits causes refrigeration oil to carbonize. This leads to complete loss of lubrication, catastrophic mechanical breakdown, and costly facility downtime. We see this constantly in the field when systems are pushed past their design parameters. Specifying the correct equipment requires understanding absolute thermal thresholds. You must evaluate how different compressor architectures handle high compression ratios under heavy loads. Implementing strict thermal management protocols during system design and maintenance prevents overheating before it starts. Recognizing the physical limits of refrigeration oil ensures continuous operation. System reliability depends entirely on maintaining discharge temperatures within the safe operating envelope.
The 225°F Standard: Industry consensus dictates that discharge line temperatures should never exceed 225°F to maintain oil integrity and maximize compressor life expectancy.
Exponential Risk Above 250°F: Operating at or above 250°F initiates rapid oil breakdown, drastically reducing equipment lifespan, while 275°F represents an extreme condition guaranteeing imminent mechanical failure.
Architecture Matters: High compression ratios in low-temperature applications require specific technologies, such as liquid injection or oil cooling circuits, to manage heat effectively.
Measurement Accuracy is Critical: Thermal limits are based on measurements taken exactly 6 inches from the compressor discharge valve; improper sensor placement invalidates thermal data and masks overheating risks.
Establishing the baseline physics of low-temperature applications explains why they inherently generate dangerous discharge heat. A freezer compressor operates under extreme thermodynamic stress. The fundamental mechanics of compressing low-pressure gas into high-pressure gas generate substantial thermal energy. Understanding this physical reality is the first step in preventing catastrophic equipment failure on the job site.
Low suction pressures combined with standard or high condensing pressures create high compression ratios. The compression ratio directly dictates the heat of compression. In low-temperature refrigeration, the suction pressure drops significantly to achieve sub-zero evaporator temperatures. Meanwhile, the condensing pressure remains tied to ambient outdoor temperatures. This massive pressure differential forces the compressor to work harder. The gas absorbs more energy during the compression stroke. This energy converts directly into sensible heat, driving discharge temperatures upward rapidly.
A standard refrigeration compressor relies heavily on the mass flow of cool suction gas to cool the internal motor windings. High return gas temperatures inherently compound discharge heat. In low-temperature applications, the refrigerant vapor returning to the compressor is often sparse. The low density of this gas provides minimal cooling capacity. If the suction gas arrives too warm, the motor cannot shed its operational heat. This residual motor heat transfers into the refrigerant vapor before it even enters the compression cylinder. The resulting discharge temperature spikes dangerously high, often catching technicians off guard during summer months.
Industry standards require measuring discharge temperature exactly 6 inches from the compressor body on the discharge line. This specific location accurately reflects internal cylinder and scroll temperatures. Measuring too close to the compressor body captures conductive heat from the heavy iron casting. Measuring too far down the line allows ambient air to cool the copper pipe. The 6-inch mark provides the most reliable external indicator of internal thermal conditions.
Locate the discharge service valve on the compressor body.
Measure exactly 6 inches down the discharge line piping.
Clean the copper surface to ensure direct metal-to-metal contact.
Secure the temperature probe tightly using a heavy-duty strap or clamp.
Wrap the sensor and the surrounding pipe with thick closed-cell insulation to block ambient air interference.
Internal discharge valve temperatures are typically 50°F to 75°F hotter than the external line measurement. A 225°F external line temperature indicates an internal temperature approaching 300°F. This 300°F internal threshold represents the absolute limit for refrigeration oil stability. When the external pipe reads 225°F, the internal valves are already operating at the extreme edge of chemical safety. Understanding this temperature differential prevents operators from developing a false sense of security when viewing external sensor data.
Mapping specific temperature ranges to chemical and mechanical outcomes defines system reliability. Thermal thresholds dictate the physical state of the internal lubrication. Exceeding these limits destroys the chemical bonds within the oil. We evaluate these temperatures to understand their direct impact on mechanical longevity and operational uptime.
The target range for continuous operation falls strictly below 225°F. Operating within this safe zone ensures optimal viscosity and chemical stability. Polyolester (POE), polyalkylene glycol (PAG), and traditional mineral oils maintain their structural integrity at these temperatures. The oil flows freely through the system. It coats bearings, seals clearances, and returns to the compressor crankcase without leaving deposits. Maintaining temperatures below 225°F guarantees the compressor will reach its engineered life expectancy.
Operating at 250°F enters the danger level. At this threshold, refrigeration oil begins to polymerize and carbonize. The heat physically alters the oil molecules. The lubricant turns into a thick, sticky sludge. This carbonized sludge coats the discharge valves and restricts gas flow. The restriction causes the compressor to work harder, generating even more heat. Operating continuously near this zone causes compressor life expectancy to drop rapidly. Long-term mechanical assets quickly turn into short-term liabilities requiring expensive replacement.
Temperatures reaching 275°F or higher represent an extreme condition. Rapid thermal degradation occurs instantly. Lubrication completely fails. The oil vaporizes and burns onto the internal components. Without lubrication, metal grinds against metal. This results in scored cylinders, worn bearings, and seized mechanical components. A compressor operating at 275°F will suffer catastrophic mechanical failure within hours or days. Immediate system shutdown is required to prevent total equipment destruction.
Compressor Discharge Temperature Thresholds and Mechanical Impacts
External Line Temperature | Estimated Internal Temperature | Oil Condition | Mechanical Impact |
|---|---|---|---|
Below 225°F | Below 300°F | Stable, optimal viscosity | Normal operation, maximum lifespan |
225°F to 249°F | 300°F to 324°F | Marginal stability, slight breakdown | Accelerated wear, reduced lifespan |
250°F to 274°F | 325°F to 349°F | Polymerization, carbonization begins | Valve coking, severe friction, rapid failure risk |
275°F and Above | 350°F and Above | Complete thermal degradation | Imminent seizure, scored cylinders, total failure |
Different compressor designs mitigate the high heat of low-temperature refrigeration through distinct engineering approaches. Selecting the right architecture prevents thermal overloads. Each design utilizes specific mechanisms to handle extreme compression ratios safely.

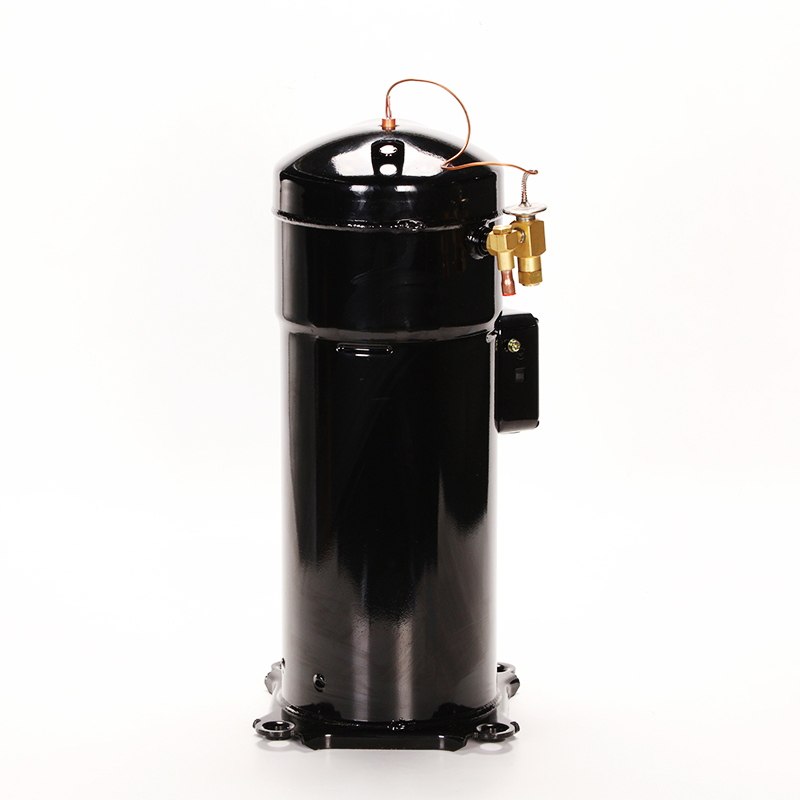

Scroll compressors utilize two interleaving spiral vanes to pump refrigerant. A low back pressure scroll compressor handles low suction pressures through scroll compliance and continuous compression. The continuous inward movement of the gas minimizes volumetric losses. The scroll sets can separate slightly to pass liquid or debris, offering excellent mechanical durability. However, the continuous compression still generates immense heat under high ratios.
To combat this heat, engineers integrate advanced cooling technologies. Enhanced Vapor Injection (EVI) introduces mid-pressure refrigerant vapor directly into the intermediate compression pockets. This cools the gas mid-cycle, significantly lowering the final discharge temperature. Liquid injection serves a similar purpose by injecting a metered amount of liquid refrigerant into the scroll set. The liquid flashes into vapor, absorbing massive amounts of heat. These technologies artificially lower discharge temperatures, allowing the scroll to survive low-temperature applications.
The best use case for these units includes medium to large commercial freezers. They excel in environments requiring high efficiency and tight footprint constraints. Supermarket freezer cases, walk-in freezers, and modular cold rooms benefit greatly from injected scroll technology. The compact design combined with active thermal management makes them highly reliable for commercial retail applications.
Rotary screw compressors utilize two meshing helical rotors to compress refrigerant gas. A low temperature screw compressor provides high-capacity industrial freezing. The rotors trap gas and force it down the length of the screw, reducing its volume and increasing its pressure. This architecture moves massive volumes of refrigerant, making it ideal for heavy industrial loads. The sheer volume of compressed gas generates extreme thermal loads that require aggressive management.
Screw compressors rely heavily on dedicated oil cooling circuits to manage these massive heat loads. The oil in a screw compressor seals the rotors, lubricates the bearings, and absorbs the heat of compression. Thermosyphon oil coolers use ambient refrigerant to cool the oil before it re-enters the compressor. Liquid injection and water-cooled heat exchangers also provide thermal reduction. Without these robust oil cooling systems, the screw compressor would overheat instantly under low-temperature conditions.
The best use case for screw architecture involves industrial blast freezers and large-scale cold storage facilities. These environments demand continuous heavy-duty operation. Food processing plants and massive distribution centers rely on screw compressors for their unmatched capacity and durability. The external oil cooling systems require more physical space but deliver the thermal stability necessary for massive industrial loads.
Reciprocating compressors utilize pistons driven by a crankshaft to compress refrigerant. This piston-driven compression remains highly susceptible to high discharge valve heat. The gas compresses within a cylinder and forces its way out through a discharge reed valve. The friction of the piston rings and the restriction of the valves create localized hot spots. In low-temperature applications, the cylinder heads can reach critical temperatures very quickly.
Managing heat in reciprocating units requires external and internal cooling technologies. Head cooling fans blow ambient air directly across the cylinder heads to dissipate heat. Demand cooling modules offer a more aggressive solution. These modules inject atomized liquid refrigerant directly into the suction manifold when the discharge temperature approaches the danger zone. The liquid cools the motor and the cylinders, keeping the discharge temperature within safe limits.
The best use case for reciprocating compressors includes legacy systems and specific modular applications. They remain popular where maintenance accessibility is prioritized. Technicians can easily rebuild reciprocating compressors in the field. Valve plates, pistons, and rods can be replaced without removing the entire compressor casting from the facility. This repairability makes them a practical choice for remote locations.
External system components heavily impact compressor thermal performance. A freezer refrigeration compressor does not operate in isolation. The surrounding system design dictates the operational pressures and temperatures the compressor must endure. Engineers must balance conceptual trade-offs to ensure thermal stability.
Refrigerant selection drives the thermal profile of the entire system. Different refrigerants possess unique thermodynamic properties. Legacy refrigerants like R-22 run notoriously hot and require extensive cooling in low-temperature applications. Modern blends like R-448A and R-449A also exhibit high discharge temperature profiles compared to older HFCs like R-404A. Conversely, CO2 (R-744) systems operate under extreme pressures and require specialized transcritical cooling designs. Selecting the right refrigerant means planning for its specific thermal behavior.
Condensing unit integration and ambient load directly dictate the condensing temperature. The sizing and airflow of a deep freezer condensing unit determine how effectively the system rejects heat. Undersized condensers struggle to dissipate heat during seasonal ambient temperature spikes. When the ambient temperature rises, the condensing pressure rises. This pushes the compression ratio higher, which consequently spikes the discharge temperature. Proper condenser sizing ensures the compressor remains within safe thermal limits during peak summer conditions.
Suction superheat control requires a delicate balance. Technicians must maintain low return gas temperatures to cool the compressor motor. However, they must avoid dropping the superheat so low that liquid refrigerant floods back into the compressor. Liquid floodback washes oil away from the bearings and destroys the mechanical components. Setting the expansion valve to provide adequate superheat at the evaporator while ensuring cool gas reaches the compressor is mandatory for thermal management.
Verify condenser coil surface area matches the peak summer ambient load calculations.
Confirm expansion valve sizing aligns with the specific refrigerant mass flow requirements.
Check piping insulation integrity on the suction line to prevent unwanted heat gain before the compressor.
Ensure adequate ventilation and clearance around the condensing unit to prevent air recirculation.
Practical steps prevent and resolve thermal failure during installation and operation. Recognizing implementation risks allows technicians to mitigate problems before they cause mechanical damage. Systematic troubleshooting identifies the root cause of high discharge temperatures.
Low refrigerant charge stands as a primary culprit for overheating. Undercharging starves the compressor of the necessary mass flow required for internal motor cooling. Without enough refrigerant circulating through the system, the return gas temperature rises. The compressor works harder to move a smaller volume of gas. This combination rapidly spikes discharge temperatures. Technicians must verify the system charge using sight glasses, subcooling measurements, and receiver levels to ensure adequate mass flow.
Sensor placement errors mask overheating risks. Placing discharge temperature sensors too far down the line results in artificially low readings. The ambient air cools the copper pipe, hiding the true temperature of the gas leaving the compressor. Technicians might read 200°F on their sensor while the actual internal valve temperature exceeds 325°F. Sensors must be placed exactly 6 inches from the discharge valve, securely strapped, and heavily insulated.
Inadequate maintenance directly spikes head pressure and discharge heat. Dirty condenser coils restrict airflow and prevent heat transfer. Failing condenser fans reduce the volume of air moving across the coils. Both scenarios force the system to operate at a higher condensing pressure. This increases the compression ratio and drives up the discharge temperature. Regular preventative maintenance, including chemical coil cleaning and fan motor inspections, is mandatory for low-temperature systems.
Implementing a strict mitigation protocol protects the equipment from sudden thermal events. Specifying and installing discharge temperature thermostats (DTT) provides a fail-safe. These sensors clamp onto the discharge line and wire directly into the compressor control circuit. Advanced electronic controllers monitor these sensors continuously. If the line temperature hits 225°F, the controller automatically shuts down the compressor. This prevents catastrophic failure and alerts the maintenance team to a system anomaly.
Strict adherence to the 225°F discharge line limit is non-negotiable for the reliability and lifespan of any low-temperature refrigeration system. Ignoring thermal thresholds guarantees premature oil breakdown and catastrophic mechanical failure. Protecting your equipment requires proactive design, precise monitoring, and rigorous maintenance protocols.
When specifying a new compressor, buyers must match the compressor architecture to the expected compression ratio and ambient condensing conditions of the facility. Choosing between a scroll with vapor injection or a screw with oil cooling depends entirely on the specific thermal loads of the application. Proper specification prevents thermal overloads before the equipment is even installed.
Review technical specification sheets for maximum allowable compression ratios.
Audit current system superheat settings to verify adequate motor cooling.
Verify refrigerant charge levels to ensure proper mass flow.
Install functional discharge temperature protection controls on all existing units.
A: The industry-standard maximum is 225°F, measured exactly 6 inches from the compressor on the discharge line. Operating below this temperature ensures the refrigeration oil remains stable and the mechanical components reach their engineered lifespan.
A: At internal temperatures above 300°F, which correlates to a 225°F external line temperature, the chemical bonds in refrigeration oil break. This causes polymerization, carbonization, and a complete loss of lubricity, leading to internal sludge and mechanical wear.
A: High suction superheat means the refrigerant gas returning to the compressor is too warm. This reduces its ability to cool the internal compressor motor, causing residual heat to compound during the compression stroke and resulting in higher discharge temperatures.
A: Yes. A low refrigerant charge reduces the mass flow of refrigerant returning to the compressor. This deprives the internal motor of cooling gas, causing the motor and the subsequent discharge temperatures to spike rapidly.
A: Low back pressure models are specifically engineered for low-temperature applications. They often feature liquid or vapor injection ports designed to cool the internal compression pockets, managing the extreme heat generated by high compression ratios.
A: Sensors must be securely strapped and heavily insulated exactly 6 inches away from the compressor discharge service valve. This specific location provides the most accurate external representation of internal cylinder and valve thermal conditions.
A: Yes. A dirty condenser restricts heat transfer, forcing the system to operate at a higher condensing pressure. This elevated head pressure directly increases the compression ratio, which subsequently drives up the heat of compression and the discharge temperature.
