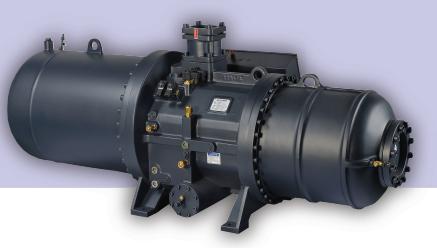

Hanbell compressor specification

Model

Displacement 60/50Hz m³/hr

Step Control (%)

Stepless Control (%)

Nominal HP 60Hz

Nominal HP 50Hz

Vi

Starting

Voltage (V)

Insulation

Protection

Oil Charge L

Oil Heater W

Hydrostatic Test kg/cm²G

Net Weight kg

RC2-100A

118 / 98

33, 66, 100

33~100

23

19

-

DOL/PWS

208/220/230/380/400/415/440/460/480/575

Class F

PTC

7

150/300

28

280

RC2-140A

165 / 137

33, 66, 100

33~100

32

26

-

DOL/PWS

208/220/230/380/400/415/440/460/480/575

Class F

PTC

7

150/300

28

280

RC2-180A

216 / 180

33, 66, 100

33~100

42

35

-

DOL/PWS

208/220/230/380/400/415/440/460/480/575

Class F

PTC

7

150/300

30

300

RC2-200A

233 / 193

25, 50, 75, 100

25~100

45

37

-

Y-△

380/400/415

Class F

PTC

8

150/300

42

420

RC2-230A

277 / 230

35, 50, 75, 100

35~100

53

44

-

Y-△

380/400/415

Class F

PTC

14

150/300

150/300

540

RC2-260A

309 / 257

25, 50, 75, 100

25~100

59

49

2.2/2.6/3.0/3.5/4.8

Y-△

380/400/415

Class F

PTC

14

150/300

42

545

RC2-300A

352 / 293

25, 50, 75, 100

25~100

67

56

-

Y-△

380/400/415

Class F

PTC

16

150/300

-

590

RC2-310A

371 / 308

35, 50, 75, 100

35~100

71

59

-

Y-△

380/400/415

Class F

PTC

16

150/300

-

575

RC2-340A

407 / 339

35, 50, 75, 100

35~100

77

64

-

Y-△

380/400/415

Class F

PTC

16

150/300

-

600

RC2-370A

440 / 366

35, 50, 75, 100

35~100

84

70

-

Y-△

380/400/415

Class F

PTC

16

150/300

-

610

RC2-410A

490 / 407

25, 50, 75, 100

25~100

93

78

-

Y-△

380/400/415

Class F

PTC

16

150/300

-

730

RC2-470A

567 / 471

25, 50, 75, 100

25~100

108

90

-

Y-△

380/400/415

Class F

PTC

18

150/300

-

800

RC2-510A

611 / 508

35, 50, 75, 100

35~100

117

98

-

Y-△

380/400/415

Class F

PTC

20

150/300

150/300

760

RC2-550A

660 / 549

25, 50, 75, 100

25~100

126

105

-

Y-△

380/400/415

Class F

PTC

23

150/300

-

820

RC2-580A

702 / 583

35, 50, 75, 100

35~100

131

109

-

Y-△

380/400/415

Class F

PTC

20

150/300

-

805

RC2-620A

745 / 619

35, 50, 75, 100

35~100

137

114

-

Y-△

380/400/415

Class F

PTC

23

150/300

-

850

RC2-710A

858 / 713

35, 50, 75, 100

35~100

158

131

-

Y-△

380/400/415

Class F

PTC

28

150/300

-

1100

RC2-790A

952 / 791

30, 50, 75, 100

30~100

175

146

-

Y-△

380/400/415

Class F

PTC

28

150/300

-

1140

RC2-830A

993 / 825

30, 50, 75, 100

30~100

183

152

-

Y-△

380/400/415

Class F

PTC

28

150/300

-

1150

RC2-930A

1117 / 929

35, 50, 75, 100

35~100

212

176

-

Y-△

380/400/415

Class F

PTC

28

150/300

-

1180

RC2-1020A

1223 / 1017

25, 50, 75, 100

25~100

227

189

-

Y-△

380/400/415

Class F

PTC

40

150/300

-

1500

RC2-1130A

1350 / 1122

25, 50, 75, 100

25~100

248

206

-

Y-△

380/400/415

Class F

PTC

40

150/300

-

1520

RC2-1270A

1521 / 1268

25, 50, 75, 100

25~100

286

238

-

Y-△

380/400/415

Class F

PTC

53

150/300

-

2100

RC2-1530A

1847 / 1539

25, 50, 75, 100

25~100

331

275

-

Y-△

380/400/415

Class F

PTC

53

150/300

-

2200
