Picture this scenario: It is the middle of a sweltering July afternoon, and your primary cooling system suddenly fails. A technician arrives, diagnoses a dead compressor, and hands you a staggering quote. Hoping to soften the financial blow, you might wonder if you can save money by replacing just the outdoor unit while leaving the indoor coil alone.
As field engineers, we see this situation constantly. Unfortunately, mismatched split cooling systems frequently fail. They create massive and unexpected repair bills down the line. Whether you are a homeowner trying to restore comfort or a facility manager overseeing a commercial cold storage warehouse, the fundamental rules of thermodynamics remain the same. A cooling system is not just a collection of independent parts. It is a highly engineered, closed-loop ecosystem.
In this comprehensive technical guide, we will explore the science of proper system matching. We will break down the hidden dangers of pairing incompatible components and show you how to make informed decisions that protect your capital equipment investment.
Key Takeaways:
An outdoor unit and an indoor coil must be precisely matched in terms of cooling capacity, refrigerant type, and efficiency ratings.
Mismatched systems inevitably lead to higher monthly energy bills, poor humidity control, premature mechanical failure, and voided warranties.
In commercial and industrial settings, calculating exact target temperatures is critical when pairing heavy-duty equipment.
Industry best practices strongly dictate replacing both the indoor and outdoor units simultaneously to ensure long-term reliability.
Always rely on certified matches and consult with reputable manufacturers to guarantee seamless operational compatibility.
To fully comprehend why component synchronization is necessary, we must first examine the individual roles of the primary hardware. Split cooling systems operate on the core principles of thermodynamics. They continuously transfer heat from an indoor environment to the exterior. This delicate process relies entirely on two distinct but deeply interconnected components.
Serving as the outdoor portion of a split system, its primary function is to compress low-pressure refrigerant gas into a high-pressure, high-temperature state. It subsequently releases the absorbed indoor heat into the ambient outdoor air.
A standard outdoor setup consists of three critical internal parts. The compressor acts as the mechanical heart of the system, relentlessly pumping refrigerant through the circuit. Next, the condenser coil—a complex series of metallic tubes and fins—facilitates a phase change, turning the hot refrigerant gas into a warm liquid. Finally, a motorized fan draws outdoor air across this coil to ensure rapid heat dissipation.
Conversely, the indoor component is typically housed within an air handler or attached directly to a furnace. Its job is to absorb sensible heat and latent moisture from the indoor air. As warm indoor air is blown across the freezing, refrigerant-filled tubes, the liquid refrigerant absorbs the thermal energy and boils into a vapor. This newly cooled and dehumidified air is then circulated back into the space.
These two halves are linked by copper refrigerant lines, creating a continuous, unbroken cycle. The indoor coil absorbs the heat, and the outdoor unit rejects it. If the volumetric capacity, airflow, or operational parameters of one component do not align perfectly with the other, the entire thermodynamic loop is disrupted. This imbalance immediately compromises the system's mechanical integrity.
Achieving a synchronized system through precise evaporator coil matching is not merely a manufacturer's recommendation. It is a strict engineering requirement for optimal operation. Properly paired components yield significant operational and financial benefits over the lifespan of the equipment.
Energy efficiency metrics are exclusively calculated based on tested, matched pairs. An outdoor unit does not possess an independent efficiency rating in a vacuum. Rather, the advertised rating reflects the combined performance of both halves working together.
Specifically, pairing a modern, high-efficiency outdoor unit with an outdated, restrictive indoor coil will severely throttle performance. The system will default to the efficiency level of the weakest link. Essentially, you end up wasting the premium price paid for the new hardware.
Cooling is not solely about lowering the temperature on a thermostat; it is equally about dehumidification. Matched systems are specifically designed to run precise cycle lengths. This allows the indoor coil to get cold enough—and stay cold long enough—to extract moisture from the air.
If the components are mismatched, the system may "short-cycle," turning on and off rapidly. This rapid cycling cools the ambient air but fails to run long enough to remove humidity. The result? A cold, clammy, and uncomfortable environment.
From a financial perspective, warranty preservation is arguably the most critical factor for property owners. Major equipment manufacturers clearly stipulate in their technical documentation that equipment must be installed as a certified matched system. Installing a brand-new outdoor compressor alongside an unverified indoor coil will almost universally void the warranty. Unmatched components dramatically increase the statistical probability of catastrophic mechanical failure.
Ignoring compatibility guidelines often leads to severe mechanical consequences. When the indoor and outdoor units operate at different capacities, the fundamental physics of the refrigeration cycle break down. This leads to a cascade of expensive problems.
The most catastrophic outcome of a mismatched system is compressor failure. This is frequently caused by a destructive phenomenon known as "liquid slugging." If the indoor coil is undersized relative to the outdoor unit, it lacks the necessary surface area to fully boil the liquid refrigerant into a vapor.
Consequently, raw liquid refrigerant travels back through the suction line directly into the compressor. Because compressors are strictly designed to compress gas—not liquid—the introduction of fluid violently shatters the internal valves. This completely destroys the compressor mechanism.
When components are improperly paired, the system is forced into a state of continuous overexertion. An oversized outdoor unit paired with an undersized indoor coil will constantly struggle to maintain target temperatures. This leads to prolonged operational cycles, elevated electrical amperage draw, and immense strain on the motors. Ultimately, this thermodynamic imbalance translates directly into significantly higher monthly utility expenditures.
Proper cooling capacity matching ensures that refrigerant pressures remain stable across varying temperatures. When capacities are misaligned, suction pressure can drop dangerously below operational thresholds.
This sudden pressure drop causes the temperature of the indoor coil to plummet below the freezing point of water. Airborne condensation rapidly freezes on the metallic fins, eventually encapsulating the entire unit in a solid block of ice. Once frozen, airflow is completely restricted, and the system ceases to function until it is manually thawed and repaired.
Ensuring compatibility requires a technical understanding of system sizing, temperature targets, and chemical variables. Facility managers and installation technicians must rely on established engineering parameters to make informed purchasing decisions.
Cooling capacity is universally measured in British Thermal Units (BTUs) and Tonnage. The fundamental rule of system matching dictates that the indoor coil's capacity must equal or slightly exceed the capacity of the outdoor unit. It must never be smaller.
Cooling Capacity (BTU/hr) | Equivalent Tonnage | Suitable Application Scale |
|---|---|---|
12,000 BTUs | 1.0 Ton | Small rooms / Server closets |
24,000 BTUs | 2.0 Tons | Standard residential zones |
36,000 BTUs | 3.0 Tons | Medium commercial spaces |
48,000 BTUs | 4.0 Tons | Large residential / Light commercial |
60,000 BTUs | 5.0 Tons | Heavy commercial applications |
Note: While a 3-ton outdoor unit can often be safely paired with a 3.5-ton indoor coil to increase efficiency and latent heat removal, pairing it with a 2.5-ton coil will inevitably cause critical system failure.
In both residential and industrial setups, the target evaporating temperature dictates the specific geometry, tube diameter, and fin spacing of the coil required. This metric represents the exact temperature at which the refrigerant boils inside the indoor coil.
For example, if a system is designed for medium-temperature cold storage (e.g., maintaining a room at 35°F), the coil and compressor must be precisely calibrated to maintain an evaporating temp of around 25°F. Deviating from these tight parameters results in inadequate heat transfer, excessive frost buildup, and rapid system degradation.
While residential systems focus primarily on human comfort, commercial refrigeration operates under entirely different, far more rigorous constraints. In environments like supermarkets, cold storage warehouses, and pharmaceutical facilities, the stakes are incredibly high. A mismatched system here does not merely result in mild discomfort; it leads to catastrophic product loss and severe financial penalties.
The operational tolerances in commercial refrigeration are exceedingly strict. Residential systems typically operate with an evaporating temp around 40°F to 45°F. In contrast, commercial systems require a much wider and more precise range.
Because of these extreme parameters, matching a commercial refrigeration condensing unit with the appropriate indoor coil requires meticulous engineering calculations. The indoor coil must be sized not just for total capacity, but for specific sensible and latent heat ratios to prevent excessive frost buildup and ensure efficient defrost cycles.

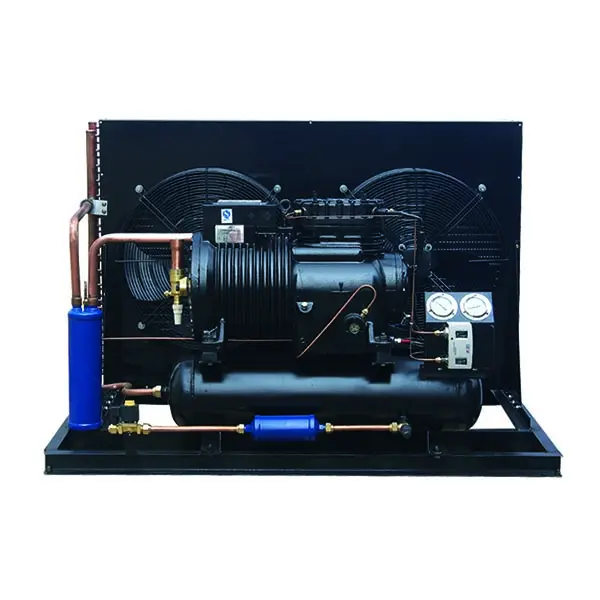

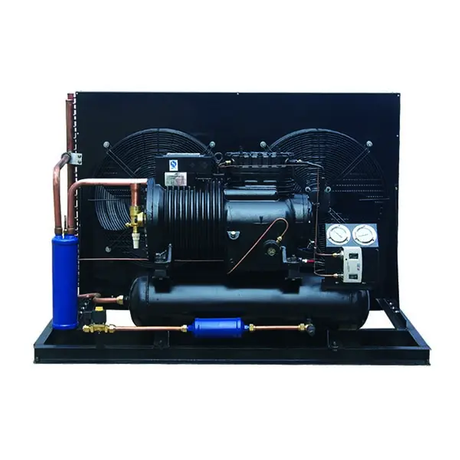

In heavy-duty commercial and industrial applications, engineers frequently specify a semi-hermetic condensing unit. Unlike fully hermetic compressors—which are permanently sealed inside a welded steel shell—semi-hermetic units are bolted together in a heavy cast-iron casing.
This robust design allows the compressor to be serviced and rebuilt directly in the field. For instance, a semi-hermetic iron compressor unit designed for 0℃ to -20℃ refrigeration is built to handle massive product loads in harsh ambient conditions. To achieve optimal performance, the evaporator coil paired with this rugged system must have matching fin spacing. Low-temperature applications require wider fin spacing (e.g., 4 fins per inch) to accommodate inevitable frost accumulation without blocking airflow.
The HVAC and refrigeration industry is currently undergoing a massive regulatory shift. Recent updates to Department of Energy (DOE) SEER2 regulations and the global transition toward low-GWP (Global Warming Potential) A2L refrigerants have fundamentally changed how engineers approach system matching.
Modern components are now engineered with highly specific wall thicknesses, advanced Electronic Expansion Valves (EEVs), and specialized lubricating oils. These newer refrigerants possess different flammability and pressure profiles compared to legacy gases. Industry experts emphasize that as these smart systems become the standard, the margin for error in component matching has essentially shrunk to zero. Mixing old coils with new low-GWP outdoor units is no longer just an efficiency issue—it is a severe safety and compliance hazard.
When a major component fails, the immediate inclination is often to minimize capital expenditure by replacing only the broken part. However, empirical data and stringent industry standards strongly advise against this piecemeal approach.
The universal rule of thumb is to replace both the indoor and outdoor units simultaneously. Cooling systems are tested and certified by regulatory bodies as complete, paired sets.
Replacing only the outdoor unit while leaving an older, degraded indoor coil in place creates a severe mechanical mismatch. Older coils were designed for lower efficiency standards and legacy refrigerants. Modern outdoor units operate at much higher pressures and require larger coil surface areas. Financially, partial replacement inevitably leads to higher long-term operational expenses. The strain placed on the new compressor by the restrictive older coil greatly increases the likelihood of premature failure.
Selecting the right hardware is the foundational step in building a resilient cooling infrastructure. The market offers a wide array of equipment, but commercial and industrial applications require hardware built to rigorous, uncompromising engineering standards.
When sourcing equipment, evaluate manufacturers based on engineering transparency, build quality, and post-installation support. High-quality manufacturers provide comprehensive capacity tables, allowing engineers to see exactly how a unit performs at various ambient and evaporating temperatures. This precise data is the cornerstone of seamless system matching.
Furthermore, physical construction matters immensely. Look for units featuring heavy-gauge steel cabinets, corrosion-resistant condenser fins, integrated high/low-pressure switches, and robust crankcase heaters. Prioritizing industrial-grade quality at the procurement stage mitigates the risk of operational downtime.
A cooling system fundamentally works as a unified team. The outdoor compressor and the indoor coil must match perfectly in capacity, refrigerant type, and efficiency ratings. If they do not, the system will inevitably fail, taking your product inventory and your maintenance budget down with it.
Proper sizing and synchronization are especially critical for commercial setups, where the tolerances for error are practically nonexistent. Always prioritize matching your cooling capacity and consult with a refrigeration engineer before purchasing new equipment. By choosing reliable parts and adhering to industry matching standards, you ensure lasting performance and long-term peace of mind. For industrial-grade solutions tailored to your specific temperature requirements, explore the robust lineup of refrigeration units at DM Compressor to guarantee your next installation is a perfect match.
Yes, in many cases, installing an evaporator coil that is up to 1 ton larger than the outdoor unit is acceptable and frequently practiced. An oversized indoor coil provides a larger surface area for heat exchange, which can improve overall energy efficiency and enhance latent heat removal. However, you must never do the reverse. Installing a larger outdoor unit with a smaller indoor coil will cause the system to operate at abnormally high pressures, leading to rapid coil freezing and compressor destruction.
The most definitive way to verify a match is to check for an AHRI (Air-Conditioning, Heating, and Refrigeration Institute) reference number. If the specific model number of the outdoor unit and the indoor coil generate an active AHRI certificate, they are a confirmed match. Additionally, you should consult the manufacturer's product data sheets or speak with a licensed technician who can cross-reference OEM compatibility charts.
The evaporating temperature dictates how cold the indoor coil gets. If it is set incorrectly—often due to improper expansion valve adjustment or mismatched coil sizing—the system will fail to perform. If the temperature is too high, the system will lack the capacity to cool the room or remove humidity. If the temperature is too low, condensation on the coil will freeze into a solid block of ice, blocking airflow and causing fatal mechanical damage to the compressor.
While it is highly recommended to use the same brand to ensure a perfect engineering match and streamline warranty claims, it is not strictly mandatory. There are reputable third-party coil manufacturers that build high-quality evaporator coils designed to work with various major outdoor unit brands. The critical factor is whether the third-party coil is officially certified to match the specific capacity, SEER rating, and refrigerant of your outdoor unit.
With the implementation of SEER2 regulations, testing procedures for static pressure and airflow have become much stricter. Older evaporator coils were not designed to meet these rigorous new airflow dynamics. Pairing a new SEER2-compliant outdoor unit with a pre-SEER2 indoor coil will almost certainly result in a system that fails to meet minimum efficiency standards, consumes excess power, and violates modern building codes.
The expansion valve is responsible for precisely metering liquid refrigerant into the evaporator coil based on the cooling load. If the coil is mismatched (e.g., undersized), the valve will struggle to maintain the correct superheat. It will constantly "hunt" (open and close erratically), leading to unstable refrigerant flow. This erratic behavior starves the compressor of proper cooling or floods it with liquid, drastically reducing the lifespan of both the valve and the compressor.
