Views: 0 Author: Site Editor Publish Time: 2026-04-22 Origin: Site
When engineers and buyers discuss heavy-duty cooling, terminology often gets tangled. You might hear someone ask if a Screw Compressor is hermetic. To answer directly: "screw" describes the mechanical compression method, while "hermetic" describes the outer enclosure. Fully hermetic models do exist for specific compact chillers. However, the vast majority of commercial and industrial versions rely on semi-hermetic or open-drive architectures. Why does this distinction matter so much? Choosing the wrong enclosure type dictates your maintenance overhead, uptime reliability, and long-term financial risk. Heavy-duty HVAC and industrial cooling systems demand specific configurations to survive grueling continuous operation. If you specify incorrectly, you face catastrophic equipment loss or extended facility downtime. In this article, you will learn the exact differences between these architectures. We will explore the trade-offs of each design and help you select the ideal configuration for your commercial requirements.
Screw compressors are available in hermetic, semi-hermetic, and open-drive configurations, but semi-hermetic is the commercial standard for loads between 50 and 1200+ tons.
Hermetic enclosures offer zero leak risk and lower noise (typically 50-70 dB) but are entirely unrepairable—a critical financial risk for high-capacity equipment.
Semi-hermetic screw compressors utilize heavy cast-iron bolted enclosures, prioritizing rebuildability and long-term TCO over initial procurement cost.
Industrial gas screw compressor applications (e.g., using ammonia) mandate open-drive architectures to prevent chemical degradation of internal motor windings.
To understand the equipment, we must first isolate the compression mechanism. A rotary screw system operates on a volumetric principle. It utilizes two interlocking components: a male rotor and a female rotor. These rotors sit inside a precisely machined casing. As they turn, they trap refrigerant gas at the suction port. The rotation pushes the gas down the length of the rotors. The available volume shrinks along this path. This reduction in volume compresses the gas. Finally, the system discharges the high-pressure gas.
This design holds a massive advantage over older technology. It features roughly 70% fewer moving parts than a traditional reciprocating compressor. You will not find any suction valves, discharge valves, or pistons here. Fewer moving parts mean less mechanical friction. This reduction in friction enables continuous, heavy-duty operation. Facilities can run these units endlessly without catastrophic fatigue failures.
Now, we must examine the enclosure. The enclosure type defines the architecture, not the cooling capability. It dictates how the motor and compressor interact.
Hermetic: Manufacturers place the motor and the compressor inside a fully welded steel shell. They seal this shell permanently. The motor and compressor share the exact same pressurized environment. You cannot open it.

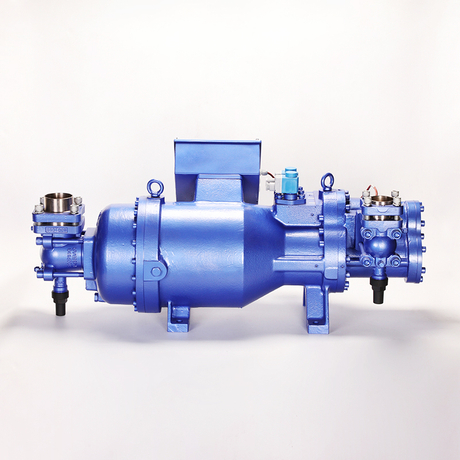

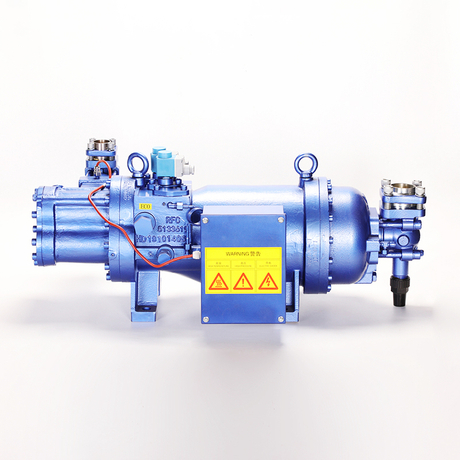

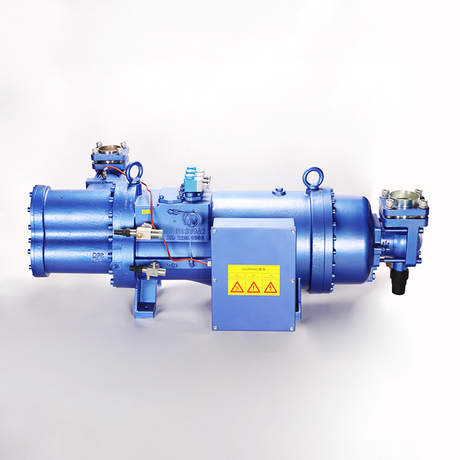

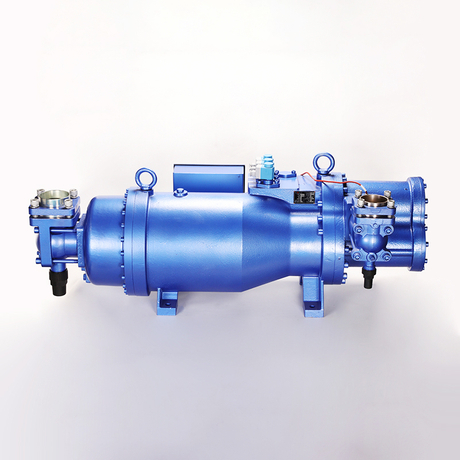

Semi-Hermetic: This design uses a heavy-duty, cast-iron shell. Like the hermetic version, the motor and compressor share a single internal environment. However, manufacturers bolt the shell together. Technicians can unbolt the casing to access internal parts for diagnostics and repairs.
Open-Drive: Here, the motor and compressor remain physically separated. They do not share an enclosure. An external drive shaft connects the motor to the compression mechanism. This requires a mechanical shaft seal to keep the refrigerant inside.
Hermetic designs serve specific, specialized applications. They offer distinct strengths for particular environments.
Strengths: First, they feature a highly compact footprint. Engineers prefer them when mechanical room space is limited. Second, they eliminate external shaft seals. Shaft seals represent the primary point of refrigerant leaks in older systems. By utilizing a fully welded shell, hermetic units drop the leak risk to near zero. Finally, they operate quietly. The welded steel naturally dampens internal sound. They typically produce between 50 and 70 decibels. This acoustic profile makes them ideal for noise-sensitive environments like hospitals, libraries, and office buildings.
Weaknesses (The Replacement Trap): You must consider the financial risk. A failed hermetic machine becomes a total loss. Because the steel shell is welded, mechanics cannot open it for repair. If a minor internal bearing fails, you cannot simply replace the bearing. You must discard the entire compressor. Replacing a high-capacity unit requires heavy lifting equipment, new piping, and extended downtime. This represents a severe operational vulnerability for mission-critical cooling.
For most commercial heavy-duty cooling, semi-hermetic architectures dominate the market.
Strengths: They deliver unmatched reliability for applications requiring 50 horsepower (HP) or more. Their primary advantage lies in rebuildability. Certified technicians can unbolt the cast-iron casing. They can replace worn bearings, swap out slide valves, or rewind a burnt motor stator. This capability drastically extends the equipment's lifespan. Furthermore, these units hold high residual value. The commercial refurbishing market heavily demands used semi-hermetic frames.
Weaknesses: These benefits come with trade-offs. The initial capital expenditure runs higher than hermetic equivalents. The manufacturing process for heavy cast-iron bolted casings costs more. Additionally, they carry a heavier baseline weight. They require reinforced mounting pads and occupy a larger physical footprint inside facility plant rooms.
Certain industrial sectors cannot use sealed enclosures. Heavy manufacturing and petrochemical cooling face extreme operational realities. These environments often deal with corrosive gases, extreme pressures, or specialized coolants. In these scenarios, isolating the electrical motor from the compression gas becomes mandatory. You cannot submerge a sensitive electrical stator inside an unpredictable chemical stream.
Industrial food processing and cold storage facilities rely heavily on ammonia refrigeration. Ammonia offers incredible thermodynamic efficiency. It also boasts a zero global warming potential. However, it presents a hard engineering rule.
Ammonia aggressively degrades copper. Standard electric motors use copper windings. If you place a standard motor inside an ammonia stream, the chemical will destroy the copper instantly. Therefore, an ammonia gas screw compressor must utilize an open-drive configuration. By physically separating the motor, you keep the copper windings safe from the refrigerant path. The motor operates safely in ambient air while the external shaft drives the internal rotors.
Open-drive architectures introduce mechanical complexities. Because the drive shaft penetrates the compressor casing, you must use shaft seals. These seals prevent the pressurized gas from escaping into the atmosphere. Shaft seals require rigorous maintenance intervals. More importantly, they demand strictly controlled environments. If dust, grit, or airborne chemicals settle on the shaft, they will ruin the seal. Plant operators must ensure the mechanical room remains clean and properly ventilated to protect these vulnerable points.
Selecting the right equipment requires balancing technical specifications against facility needs. Buyers should evaluate three primary criteria before finalizing a procurement order.
Capacity thresholds dictate your technology choices. For light commercial loads under 50 HP, hermetic scroll designs often win the efficiency battle. A good scroll unit can achieve up to 95% volumetric efficiency in this smaller range. They are cheap, reliable, and perfectly suited for 10 to 30 HP applications.
However, the physics change above 50 HP. As loads scale toward 200+ HP (or up to 1200 tons of cooling), scroll technology becomes impractical. Semi-hermetic screw units become the definitive choice here. They provide stable, continuous output under massive thermal loads. While they cost more in the overlapping 40-50 HP range, their durability makes them the smarter industrial investment.
Comparison of Commercial Compressor Architectures
Architecture |
Ideal Capacity Range |
Maintenance Strategy |
Refrigerant Leak Risk |
|---|---|---|---|
Hermetic Scroll |
Under 50 HP |
Run to failure (Replace) |
Virtually Zero |
Hermetic Screw |
50 HP - 150 HP |
Run to failure (Replace) |
Virtually Zero |
Semi-Hermetic Screw |
50 HP - 1200+ Tons |
Scheduled overhaul (Rebuild) |
Low |
Open-Drive Screw |
100 HP - 2000+ Tons |
Intensive maintenance (Rebuild) |
Moderate (Shaft Seals) |
Modern procurement demands energy efficiency. Variable Speed Drive (VSD) technology represents a crucial upgrade. Traditional compressors run at a fixed speed. They cycle on and off to meet cooling demands. This constant cycling wastes massive amounts of electricity.
Pairing a VSD with a rotary screw machine solves this problem. The inverter dynamically adjusts the rotor speed to match the exact thermal load of the building. If the facility only needs 60% cooling capacity, the rotors spin at 60% speed. This integration lowers lifecycle energy consumption drastically. It also reduces mechanical shock during startups, extending the life of the bearings.
Facility location dictates acoustic requirements. You must contrast the acoustic profiles of different architectures. Hermetic units offer natural sound dampening through their welded steel shells. They integrate easily into office spaces.
Conversely, semi-hermetic cast-iron units emit significant noise and vibration. The heavy rotors generate low-frequency hums. If you install these units near occupied commercial spaces, you must plan for acoustic mitigation. Engineers typically add thick acoustic jacketing, specialized isolation mounts, and floating concrete pads to control the noise.
Rotary systems rely heavily on precision engineering. The clearance between the male and female rotors is microscopically thin. To function correctly, these mechanisms require precise oil injection. Oil performs three critical jobs simultaneously.
Sealing: The oil fills the microscopic gaps between the rotors, preventing high-pressure gas from slipping backward.
Cooling: Compressing gas generates intense heat. The oil absorbs this heat, protecting the metal rotors from thermal expansion and seizing.
Lubricating: It lubricates the heavy-duty bearings that support the rotor shafts.
Managing this oil adds complexity to the system design. The gas leaves the compression chamber mixed with hot oil. It must pass through a coalescing oil separator. This separator strips the oil from the gas.
Interestingly, semi-hermetic screw systems often avoid using mechanical oil pumps. Instead, they utilize internal pressure differentials. The separator sits on the high-pressure discharge side. The oil injection ports sit on the low-pressure suction side. This pressure difference naturally forces the oil back into the casing. Eliminating the mechanical oil pump removes a major potential failure point, boosting overall system reliability.
Industry standards continue to evolve. Some modern applications demand oil-free or reduced-oil operation. Engineers now employ liquid refrigerant injection as a low-maintenance alternative. Instead of injecting oil for cooling, the system injects a precise mist of liquid refrigerant directly into the compression chamber. The liquid flashes into vapor, absorbing massive amounts of heat. This technique cools the rotors effectively. It reduces the reliance on large, complex oil management loops, shrinking the equipment footprint even further.
Navigating commercial refrigeration requires a clear understanding of equipment architecture. While fully hermetic screw models exist for highly specific, leak-sensitive, low-noise applications, they represent a fraction of the heavy-duty market. The semi-hermetic architecture remains the most economically viable choice for continuous commercial operations. Its robust cast-iron design and complete repairability provide unmatched longevity.
For engineering and procurement teams finalizing a specification, we recommend the following actionable next steps:
Audit your facility's operational risk tolerance. Determine if your operation can survive the extended downtime required to replace a fully welded unit.
Calculate your exact baseline cooling load. Use this data to justify the integration of Variable Speed Drives (VSD) for long-term energy savings.
Evaluate your mechanical room environment. If you plan to use ammonia or operate in highly corrosive air, immediately pivot to an open-drive configuration.
A: Mechanical design separates them. Scroll compressors use stationary and orbiting plates. They run quietly and efficiently. You typically find them in applications strictly under 15 HP. Screw compressors use interlocking rotors. They handle extreme weather better. They dominate continuous, high-capacity industrial cooling.
A: Yes. Unlike fully welded hermetic models, semi-hermetic enclosures are bolted. This allows certified technicians to open the casing. They can replace bearings, swap rotors, and rewind stators. This repairability drastically extends the equipment's lifespan and protects your initial investment.
A: It depends heavily on the internal design and the oil management system. However, commercial semi-hermetic units typically operate at a volumetric efficiency between 75% and 85%. Proper oil injection and variable speed drives can optimize this performance across varying thermal loads.
