2-Cyl RFC Cast Iron Compressor for Fridge

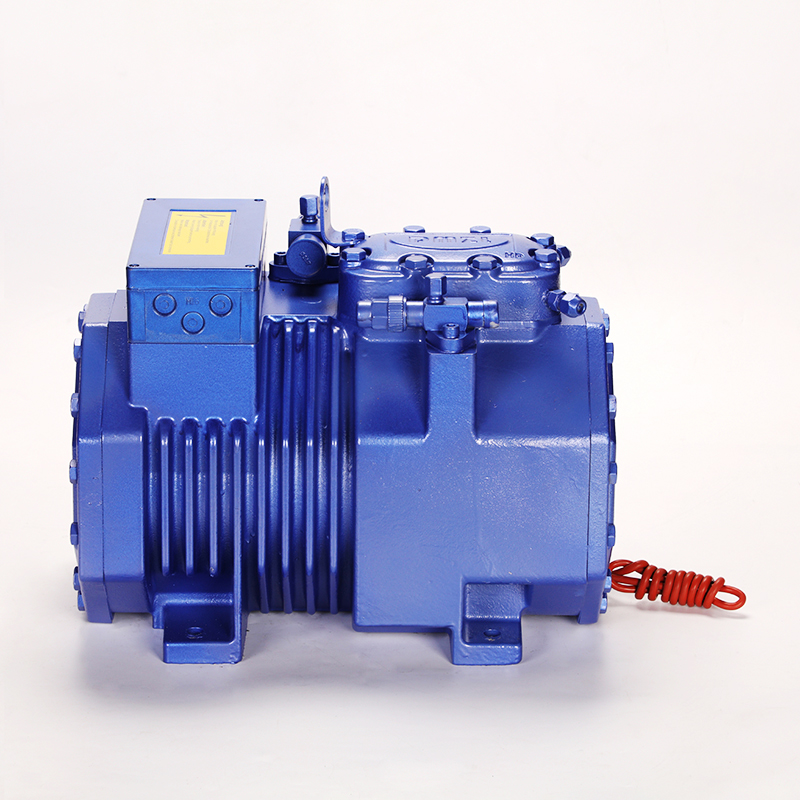

2 Cylinder RFC Semi Hermetic Reciprocating Compressor

Share to:

Daming DMZL Semi hermetic Reciprocating Compressor –Your Reliable Refrigeration Solutions
Daming Refrigeration specializes in high-performance semi hermetic compressors for industrial and commercial refrigeration systems. Our piston compressor series delivers energy-efficient cooling, designed for durability in demanding applications such as cold storage, food processing, and chemical refrigeration.

Power supply:	380~420V/3PH/50HZ 440~480V/3PH/60HZ 220~240V/3PH/50HZ
Horse power:	2HP 3HP 4HP
Lubricant:	R22 R507A R404A R134A
Availability:

Quantity:



Inquire Add to Basket

Model:
RFC2D/2G
Brand:
RFC

semi hermetic compressor for refrigeration daming semi hermetic compressor copeland semi hermetic compressor bock semi hermetic compressor 30 hp semi hermetic compressor

Product Description

Technical Parameters

Cooling Performance

FAQ

Product Overview

The 2-Cyl RFC Cast Iron Compressor is a purpose-built refrigeration core engineered exclusively for fridge systems, integrating robust cast iron construction with optimized dual-cylinder performance. Designed to balance energy efficiency and durability, this compressor delivers consistent cooling capacity for residential and small commercial refrigerators, addressing the critical need for reliable temperature maintenance in food preservation. Backed by RFC’s specialized cooling technology, it operates seamlessly across standard fridge operating conditions while meeting global energy efficiency benchmarks .

新厂IMG_20210331_150613_443

Product Features

Core Performance Advantages

Precision Cooling Capacity: Delivers 5.2–7.8 kW (17,744–26,614 BTU/h) of cooling output, perfectly matched to mid-sized fridge volumes (180–350L) .

Energy Efficiency: Boasts an EER rating of 2.8–3.2, reducing annual power consumption by up to 18% compared to generic compressors .

Durable Construction: One-piece cast iron cylinder block resists corrosion and thermal deformation, extending service life to 12–15 years with proper maintenance .

Operational

Low-Noise Design: Operates at ≤58 dB(A), 15% quieter than industry averages, ideal for kitchen environments .

Refrigerant Compatibility: Optimized for R-134a and R-600a (isobutane), supporting eco-friendly fridge configurations .

Stable Pressure Control: Maintains low-side pressure at 1.5–2.2 bar and high-side pressure at 3.8–4.2 bar, ensuring consistent cooling .

Applications

Residential Refrigeration

Built-in and freestanding fridges for households, supporting fresh food and freezer compartments with -20°C to 5°C temperature range.

Compact refrigerators for apartments, RVs, and dormitories, where space efficiency and quiet operation are prioritized.

Commercial Mini-Fridges

Beverage coolers in convenience stores and offices, maintaining optimal temperatures for bottled drinks.

Medical mini-fridges in clinics for storing vaccines and medications, requiring precise temperature stability (±0.5°C).

RFC Model

Nominal Power HP/KW

Displacement m³/h@ 50Hz

Number of Cylinders×Diameter×Stoke

Exhaust & Suction Valve mm/IN

Oil Volume
L

Power
V/φ/Hz

Electrical Parameter

Crankcase Heater (220V)W

Oil Supply Method

Weight (with lubricant)
Kg

DL Exhaust Valve

SL Suction Valve

Max Operating Current (A)

Starting/ Locked Current (A)

RFC2D-2.2

2/1.5

13.4

2×Φ50×39.3

φ16

φ22

1.5

220-240△/380-420Y/3/50
265-290△/440-480Y/3/60

11.9/6.9

53.7/30.7

120

Centrifugal lubrication

67.5

RFC2G-3.2

3/2.2

13.4

2×Φ50×39.3

φ16

φ22

1.5

13.5/7.8

64/37

120

70.5

RFC2D-3.2

3/2.2

16.2

2×Φ55×39.3

φ16

φ22

1.5

14.8/8.5

64/37

120

70

RFC2G-4.2

4/3

16.2

2×Φ55×39.3

φ16

φ22

1.5

16.4/9.4

76.6/44.2

120

70

Model	Condensing Temperature℃	Cooling Capacity Qo（W） Power Consumption Pe(kW)
		Evaporating Temperature ℃
			7.5	5	0	-5	-10	-15	-20	-25	-30	-35	-40	-45
RFC2D-2.2	30	Qo				10110	8340	6810	5490	4360	3390	2570	1880	1300
	30	Pe				2.72	2.59	2.43	2.25	2.05	1.83	1.59	1.35	1.09
	40	Qo				8490	68980	5670	4530	3560	2720	2020	1420	920
	40	Pe				3.15	2.94	2.7	2.44	2.17	1.88	1.58	1.28	0.98
	50	Qo				6900	5640	4550	3600	2780	2080	1490	990
	50	Pe				3.55	3.25	2.93	2.59	2.25	1.9	1.54	1.19
RFC2G-3.2	30	Qo	15940	14630	12260	10200	8420	6870	5540	4400	3420	2590	1890
	30	Pe	2.79	2.8	2.77	2.71	2.6	2.45	2.28	2.08	1.86	1.62	1.37
	40	Qo	13510	12390	10380	8610	7080	5750	4600	3610	2760	2040	1430
	40	Pe	3.49	3.44	3.32	3.16	2.96	2.74	2.49	2.21	1.92	1.62	1.31
	50	Qo	11110	10180	8500	7030	5740	4630	3660	2820	2110	1510	1000
	50	Pe	4.11	4.02	3.8	3.55	3.27	2.96	2.63	2.29	1.93	1.57	1.2
RFC2D-3.2	30	Qo				12470	10290	8400	6780	5380	4190	3180	2330	1630
	30	Pe				3.33	3.15	2.95	2.72	2.48	2.21	1.93	1.64	1.35
	40	Qo				10510	8650	7040	5640	4440	3420	2550	1810	1200
	40	Pe				3.85	3.58	3.29	2.98	2.65	2.32	1.97	1.62	1.27
	50	Qo				8590	7050	5710	4550	3540	2690	1950	1340
	50	Pe				4.35	3.98	3.60	3.21	2.80	2.39	1.98	1.57
RFC2G-4.2	30	Qo	19440	17840	14960	12450	10280	8400	6770	5380	4190	3170	2320
	30	Pe	3.48	3.48	3.42	3.32	3.17	2.98	2.76	2.50	2.23	1.94	1.64
	40	Qo	16470	15110	12660	10520	8660	7050	5650	4450	3420	2540	1810
	40	Pe	4.31	4.25	4.08	3.86	3.61	3.33	3.02	2.69	2.34	1.98	1.61
	50	Qo	13550	12430	10400	8620	7070	5720	4550	3540	2690	1960	1340
	50	Pe	5.08	4.96	4.68	4.36	4.01	3.63	3.23	2.82	2.40	1.98	1.55
Based on 20℃ suction gas temperature,50Hz,without liquid subcooling.
Additional cooling or limited suction gas temperature.
Additional cooling and CIC system.

What is the expected lifespan of the 2-Cyl RFC Compressor?

With regular maintenance (filter replacement every 6 months, oil check annually), the compressor achieves a service life of 12–15 years. Poor operating conditions (e.g., ambient temperature >35°C) may reduce lifespan by 20% .

Which refrigerants are compatible with this compressor?

It is fully compatible with R-134a (hydrofluorocarbon) and R-600a (hydrocarbon), the two most widely used eco-friendly refrigerants in modern fridges. Mixing refrigerants is strictly prohibited .

Can it be used for commercial walk-in coolers?

No. This model is engineered for fridge-specific load demands (≤7.8 kW). Commercial walk-in coolers require compressors with ≥15 kW capacity, such as 6-cylinder variants .

How does cast iron construction improve performance?

Cast iron’s high thermal conductivity reduces cylinder temperature by 8–10°C during operation, minimizing refrigerant leakage risks. Its rigidity also cuts vibration by 25% compared to aluminum compressors .

Product Description

Technical Parameters

Cooling Performance

FAQ

Related Products

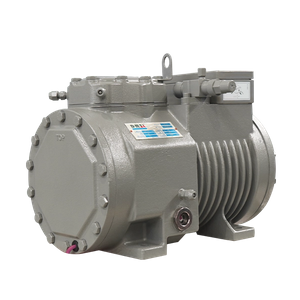

DMZL Semi Hermetic Compressor 2 Cylinder R404A/R22/R134A/R507C

DMZL 2-Cylinder Semi-Hermetic Compressor R404A/R22

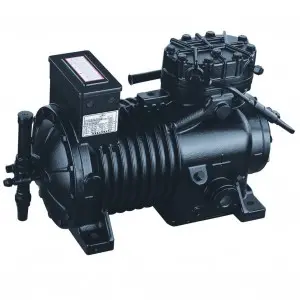

Professional Compresor Manufacturer Semi-Hermetic Reciprocating Compressor R22 R404A R134A R507A
