| Horse Power: | |
|---|---|
| Power supply: | |
| Motor protector: | |
| Lubricant: | |
| Availability: | |
| Quantity: | |
4YD/4YG
DMZL

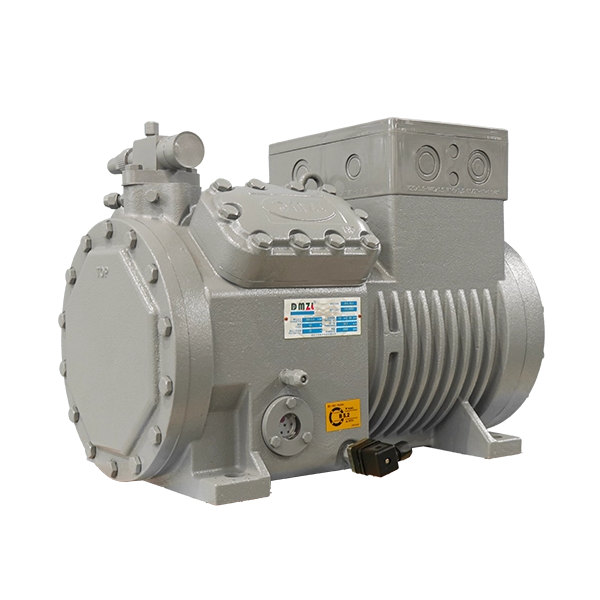

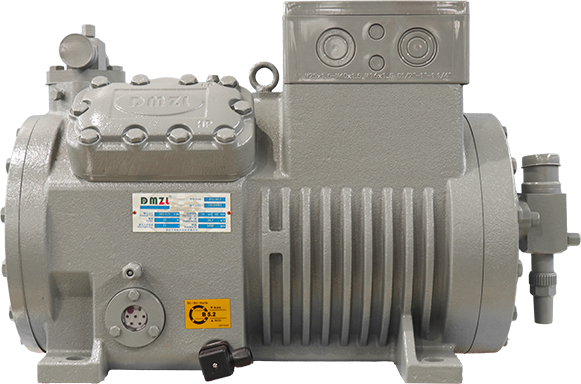

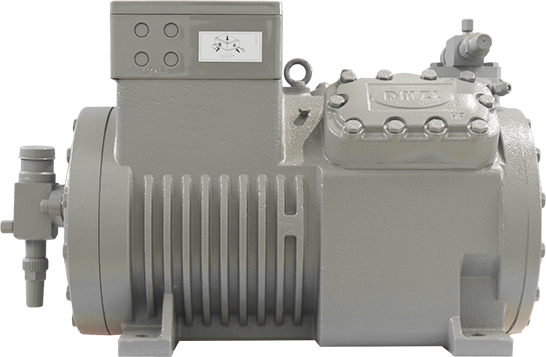

Designed for high-power low/mid-temperature refrigeration, the DMZL 4-Cylinder Semi-Hermetic Piston Compressor (8-20HP) delivers robust performance for industrial-scale cooling needs. Its forced-lubrication system and heavy-duty construction make it suitable for demanding environments where reliability and high cooling capacity are non-negotiable.
• Powers walk-in freezers and bulk cold storage facilities (1,000–5,000㎡) for frozen meats, seafood, and agricultural products, maintaining temperatures as low as -45°C (with R404A/R507A).
• Supports multi-compressor parallel systems for scalable cooling, ideal for distribution centers in the food and pharmaceutical industries.
• Industrial Cooling: Cools machinery and processes in plastic extrusion, chemical production, and electronics manufacturing, where heat loads require 5.5–15kW cooling capacity.
• Commercial Frozen Displays: Drives large-format frozen food islands in hypermarkets and industrial-grade ice-making machines, ensuring consistent freezing without energy waste.
• Forced-Lubrication System: Ensures continuous oil supply to critical components (crankshaft, bearings) even under high-load operation, reducing wear and extending service life to 15+ years.
• Semi-Hermetic Sealing: Integral motor-compressor casting eliminates shaft seals, minimizing refrigerant leakage (≤0.1% annual leakage rate) and lowering environmental impact.
• Precision CNC Machining: Cylinder bores and crankshafts are processed via 5-axis CNC centers, ensuring concentricity and minimal dead space—boosting compression efficiency by 8–10% vs. standard compressors.
• Wear-Resistant Components: Chrome-plated piston rings, hardened alloy steel crankshafts, and imported impact-resistant spring steel valve reeds withstand high pressure and frequent cycling.

• CIC System Compatibility: Supports Crankcase Injection Cooling (CIC) for high-temperature environments (ambient >40°C), preventing overheating during peak loads.
• Customized Cooling Solutions: Engineers provide load calculations and system design for parallel compressor setups, ensuring optimal energy efficiency (EER 3.0–3.5).
• After-Sales Warranty: 24-month warranty on the compressor body, with free on-site repair for major failures within the first year.
• Spare Parts Inventory: Global warehouses stock critical parts (lubrication pumps, motor windings) for next-day delivery to industrial clients.
| DMZL Model | Nominal Power HP/KW | Displacement m³/h@ 50Hz | Number of Cylinders×Diameter×Stoke | Exhaust & Suction Valve mm/IN | Oil Volume L | Power V/φ/Hz | Electrical Parameter | Crankcase Heater (220V)W | Oil Supply Method | Weight (with lubricant) Kg | ||
| DL Exhaust Valve | SL Suction Valve | Max Operating Current (A) | Starting/ Locked Current (A) | |||||||||
| 4YD-3.2 | 3/2.2 | 18.1 | 4×φ41×39.3 | φ16 | φ22 | 2 | 220-240△/380-420Y/3/50 265-290△/440-480Y/3/60 | 15.9/9.2 | 76.6/44.2 | 120 | Centrifugal lubrication | 82 |
| 4YG-5.2 | 5/3.7 | 18.1 | 4×φ41×39.3 | φ16 | φ22 | 2 | 220-240△/380-420Y/3/50 265-290△/440-480Y/3/60 | 18.7/10.8 | 107.7/62.2 | 120 | Centrifugal lubrication | 86 |
| 4YD-4.2 | 4/3 | 22.7/27.4 | 4×φ46×39.3 | φ22 | φ28 | 2 | 220-240△/380-420Y/3/50 265-290△/440-480Y/3/61 | 18.5/10.7 | 92.7/53.2 | 120 | Centrifugal lubrication | 84 |
| 4YG-6.2 | 6/4.4 | 22.7/27.4 | 4×φ46×39.3 | φ22 | φ28 | 2 | 220-240△/380-420Y/3/50 265-290△/440-480Y/3/61 | 22.9/13.2 | 107.7/62.2 | 120 | Centrifugal lubrication | 86 |
| 4YD-5.2 | 5/3.7 | 26.8 | 4×φ50×39.3 | φ22 | φ28 | 2 | 220-240△/380-420Y/3/50 265-290△/440-480Y/3/60 | 23.4/13.5 | 107.7/62.2 | 120 | Centrifugal lubrication | 85.5 |
| 4YG-7.2 | 7/5.1 | 26.8 | 4×φ50×39.3 | φ22 | φ28 | 2 | 220-240△/380-420Y/3/50 265-290△/440-480Y/3/60 | 27.5/15.9 | 142.8/82.4 | 120 | Centrifugal lubrication | 88.5 |
| 4YD-6.2 | 6/4.4 | 32.5 | 4×φ55×39.3 | φ22 | φ28 | 2 | 220-240△/380-420Y/3/50 265-290△/440-480Y/3/60 | 27.5/15.9 | 142.8/82.4 | 120 | Centrifugal lubrication | 90.5 |
| 4YG-9.2 | 9/6.6 | 32.5 | 4×φ55×39.3 | φ22 | φ28 | 2 | 220-240△/380-420Y/3/50 265-290△/440-480Y/3/60 | 34.5/20 | 142.8/82.4 | 120 | Centrifugal lubrication | 90.5 |
R134A
| Model | Condensing Temperature℃ | Coolinng Capacity Qo(W) Power Consumption Pe(kW) | ||||||||||||||||||||||
| Evaporating Temperature ℃ | ||||||||||||||||||||||||
| 12.5 | 10 | 7.5 | 5 | 0 | -5 | -10 | -15 | -20 | -25 | -30 | ||||||||||||||
| 50HZ | 60HZ | 50HZ | 60HZ | 50HZ | 60HZ | 50HZ | 60HZ | 50HZ | 60HZ | 50HZ | 60HZ | 50HZ | 60HZ | 50HZ | 60HZ | 50HZ | 60HZ | 50HZ | 60HZ | 50HZ | 60HZ | |||
| 4YD-8.2 | 30 | Qo | 38400 | 46080 | 35000 | 42000 | 31800 | 38160 | 28900 | 34680 | 23600 | 28320 | 19120 | 22944 | 15280 | 18336 | 12030 | 14436 | 9280 | 11136 | 6980 | 8376 | 5080 | 6096 |
| Pe | 5.05 | 6.06 | 5.12 | 6.144 | 5.16 | 6.192 | 5.16 | 6.192 | 5.05 | 6.06 | 4.83 | 5.796 | 4.53 | 5.436 | 4.15 | 4.98 | 3.73 | 4.476 | 3.28 | 3.936 | 2.84 | 3.408 | ||
| 40 | Qo | 33950 | 40740 | 30900 | 37080 | 28050 | 33660 | 25400 | 30480 | 20700 | 24840 | 16670 | 20004 | 13220 | 15864 | 10290 | 12348 | 7810 | 9372 | 5730 | 6876 | 3990 | 4788 | |
| Pe | 6.63 | 7.956 | 6.52 | 7.824 | 6.39 | 7.668 | 6.24 | 7.488 | 5.87 | 7.044 | 5.43 | 6.516 | 4.93 | 5.916 | 4.40 | 5.28 | 3.83 | 4.596 | 3.26 | 3.912 | 2.69 | 3.228 | ||
| 50 | Qo | 29350 | 35220 | 26700 | 32040 | 24200 | 29040 | 21900 | 26280 | 17730 | 21276 | 14170 | 17004 | 11110 | 13332 | 8520 | 10224 | 6320 | 7584 | 4470 | 5364 | 2930 | 3516 | |
| Pe | 7.88 | 9.456 | 7.64 | 9.168 | 7.38 | 8.856 | 7.10 | 8.52 | 6.52 | 7.824 | 5.89 | 7.068 | 5.23 | 6.276 | 4.54 | 5.448 | 3.84 | 4.608 | 3.14 | 3.768 | 2.44 | 2.928 | ||
| 4YG-12.2 | 50 | Qo | 29100 | 34920 | 26400 | 31680 | 23900 | 28680 | 21550 | 25860 | 17390 | 20868 | 13810 | 16572 | 10750 | 12900 | 8140 | 9768 | 5940 | 7128 | 0 | 0 | ||
| Pe | 7.51 | 9.012 | 7.33 | 8.796 | 7.12 | 8.544 | 6.88 | 8.256 | 6.34 | 7.608 | 5.73 | 6.876 | 5.06 | 6.072 | 4.37 | 5.244 | 3.66 | 4.392 | 0 | 0 | ||||
| 60 | Qo | 24450 | 29340 | 22150 | 26580 | 19990 | 23988 | 18000 | 21600 | 14420 | 17304 | 11340 | 13608 | 8710 | 10452 | 6460 | 7752 | 4560 | 5472 | 0 | 0 | |||
| Pe | 8.49 | 10.188 | 8.18 | 9.816 | 7.86 | 9.432 | 7.51 | 9.012 | 6.79 | 8.148 | 6.02 | 7.224 | 5.21 | 6.252 | 4.40 | 5.28 | 3.58 | 4.296 | 0 | 0 | ||||
| 70 | Qo | 19850 | 23820 | 17950 | 21540 | 16170 | 19404 | 14520 | 17424 | 11540 | 13848 | 8970 | 10764 | 6760 | 8112 | 4880 | 5856 | 3290 | 3948 | 0 | 0 | |||
| Pe | 9.15 | 10.98 | 8.75 | 10.5 | 8.33 | 9.996 | 7.91 | 9.492 | 7.04 | 8.448 | 6.14 | 7.368 | 5.24 | 6.288 | 4.33 | 5.196 | 3.43 | 4.116 | 0 | 0 | ||||
| 4YD-10.2 | 30 | Qo | 44850 | 53820 | 40850 | 49020 | 37150 | 44580 | 33700 | 40440 | 27550 | 33060 | 22300 | 26760 | 17790 | 21348 | 13960 | 16752 | 10730 | 12876 | 8020 | 9624 | 5760 | 6912 |
| Pe | 5.88 | 7.056 | 6.01 | 7.212 | 6.08 | 7.296 | 6.10 | 7.32 | 5.99 | 7.188 | 5.73 | 6.876 | 5.33 | 6.396 | 4.84 | 5.808 | 4.30 | 5.16 | 3.73 | 4.476 | 3.17 | 3.804 | ||
| 40 | Qo | 39600 | 47520 | 36000 | 43200 | 32700 | 39240 | 29650 | 35580 | 24150 | 28980 | 19410 | 23292 | 15360 | 18432 | 11920 | 14304 | 9000 | 10800 | 6540 | 7848 | 4480 | 5376 | |
| Pe | 7.63 | 9.156 | 7.56 | 9.072 | 7.45 | 8.94 | 7.29 | 8.748 | 6.89 | 8.268 | 6.38 | 7.656 | 5.77 | 6.924 | 5.11 | 6.132 | 4.41 | 5.292 | 3.70 | 4.44 | 3.01 | 3.612 | ||
| 50 | Qo | 34200 | 41040 | 31100 | 37320 | 28200 | 33840 | 25450 | 30540 | 20600 | 24720 | 16450 | 19740 | 12870 | 15444 | 9820 | 11784 | 7230 | 8676 | 5050 | 6060 | 3220 | 3864 | |
| Pe | 9.11 | 10.932 | 8.85 | 10.62 | 8.56 | 10.272 | 8.26 | 9.912 | 7.58 | 9.096 | 6.84 | 8.208 | 6.05 | 7.26 | 5.24 | 6.288 | 4.40 | 5.28 | 3.58 | 4.296 | 2.77 | 3.324 | ||
| 4YG-15.2 | 50 | Qo | 34700 | 41640 | 31450 | 37740 | 28450 | 34140 | 25650 | 30780 | 20650 | 24780 | 16350 | 19620 | 12680 | 15216 | 9560 | 11472 | 6930 | 8316 | 0 | 0 | ||
| Pe | 8.78 | 10.536 | 8.54 | 10.248 | 8.28 | 9.936 | 8.00 | 9.6 | 7.36 | 8.832 | 6.65 | 7.98 | 5.88 | 7.056 | 5.07 | 6.084 | 4.24 | 5.088 | 0 | 0 | ||||
| 60 | Qo | 29250 | 35100 | 26500 | 31800 | 23900 | 28680 | 21500 | 25800 | 17170 | 20604 | 13450 | 16140 | 10270 | 12324 | 7550 | 9060 | 5260 | 6312 | 0 | 0 | |||
| Pe | 9.80 | 11.76 | 9.44 | 11.328 | 9.06 | 10.872 | 8.67 | 10.404 | 7.83 | 9.396 | 6.94 | 8.328 | 6.01 | 7.212 | 5.05 | 6.06 | 4.07 | 4.884 | 0 | 0 | ||||
| 70 | Qo | 23850 | 28620 | 21550 | 25860 | 19380 | 23256 | 17380 | 20856 | 13770 | 16524 | 10650 | 12780 | 7960 | 9552 | 5670 | 6804 | 3720 | 4464 | 0 | 0 | |||
| Pe | 10.58 | 12.696 | 10.12 | 12.144 | 9.64 | 11.568 | 9.15 | 10.98 | 8.14 | 9.768 | 7.09 | 8.508 | 6.00 | 7.2 | 4.89 | 5.868 | 3.76 | 4.512 | 0 | 0 | ||||
| 4YD-12.2 | 30 | Qo | 50900 | 61080 | 46300 | 55560 | 42100 | 50520 | 38250 | 45900 | 31300 | 37560 | 25350 | 30420 | 20250 | 24300 | 15930 | 19116 | 12290 | 14748 | 9240 | 11088 | 6700 | 8040 |
| Pe | 7.45 | 8.94 | 7.40 | 8.88 | 7.33 | 8.796 | 7.22 | 8.664 | 6.93 | 8.316 | 6.55 | 7.86 | 6.10 | 7.32 | 5.58 | 6.696 | 5.01 | 6.012 | 4.41 | 5.292 | 3.79 | 4.548 | ||
| 40 | Qo | 45300 | 54360 | 41200 | 49440 | 37450 | 44940 | 33950 | 40740 | 27700 | 33240 | 22300 | 26760 | 17680 | 21216 | 13760 | 16512 | 10440 | 12528 | 7650 | 9180 | 5320 | 6384 | |
| Pe | 9.16 | 10.992 | 8.97 | 10.764 | 8.75 | 10.5 | 8.50 | 10.2 | 7.95 | 9.54 | 7.33 | 8.796 | 6.65 | 7.98 | 5.92 | 7.104 | 5.17 | 6.204 | 4.39 | 5.268 | 3.61 | 4.332 | ||
| 50 | Qo | 39550 | 47460 | 35950 | 43140 | 32600 | 39120 | 29500 | 35400 | 23900 | 28680 | 19090 | 22908 | 14980 | 17976 | 11480 | 13776 | 8510 | 10212 | 6020 | 7224 | 3930 | 4716 | |
| Pe | 10.79 | 12.948 | 10.45 | 12.54 | 10.09 | 12.108 | 9.71 | 11.652 | 8.88 | 10.656 | 7.99 | 9.588 | 7.05 | 8.46 | 6.10 | 7.32 | 5.15 | 6.18 | 4.22 | 5.064 | 3.34 | 4.008 | ||
| 4YG-20.2 | 50 | Qo | 40250 | 48300 | 36500 | 43800 | 33000 | 39600 | 29800 | 35760 | 23950 | 28740 | 18970 | 22764 | 14690 | 17628 | 11040 | 13248 | 7940 | 9528 | 0 | |||
| Pe | 10.42 | 12.504 | 10.11 | 12.132 | 9.77 | 11.724 | 9.41 | 11.292 | 8.63 | 10.356 | 7.77 | 9.324 | 6.85 | 8.22 | 5.88 | 7.056 | 4.89 | 5.868 | 0 | |||||
| 60 | Qo | 33900 | 40680 | 30650 | 36780 | 27650 | 33180 | 24850 | 29820 | 19850 | 23820 | 15530 | 18636 | 11830 | 14196 | 8690 | 10428 | 6020 | 7224 | |||||
| Pe | 11.65 | 13.98 | 11.20 | 13.44 | 10.72 | 12.864 | 10.22 | 12.264 | 9.18 | 11.016 | 8.10 | 9.72 | 6.98 | 8.376 | 5.84 | 7.008 | 4.70 | 5.64 | ||||||
| 70 | Qo | 27500 | 33000 | 24850 | 29820 | 22350 | 26820 | 20000 | 24000 | 15840 | 19008 | 12240 | 14688 | 9150 | 10980 | 6520 | 7824 | 4300 | 5160 | |||||
| Pe | 12.59 | 15.108 | 12.01 | 14.412 | 11.42 | 13.704 | 10.82 | 12.984 | 9.57 | 11.484 | 8.30 | 9.96 | 7.02 | 8.424 | 5.75 | 6.9 | 4.52 | 5.424 | ||||||
Suction gas temperature 20℃,50Hz,without liquid subcooling.
Additional cooling or limited suction gas temperature.
R404A/R507A
| Model | Condensing Temperature℃ | Cooling Capacity Qo(W) Power Consumption Pe(kW) | ||||||||||||
| Evaporating Temperature ℃ | ||||||||||||||
| 7.5 | 5 | 0 | -5 | -10 | -15 | -20 | -25 | -30 | -35 | -40 | -45 | |||
| 4YD-8.2 | 30 | Qo | 33050 | 27250 | 22200 | 17890 | 14170 | 10990 | 8300 | 6040 | 4150 | |||
| Pe | 8.74 | 8.17 | 7.55 | 6.87 | 6.16 | 5.41 | 4.64 | 3.86 | 3.07 | |||||
| 40 | Qo | 27750 | 22800 | 18480 | 14760 | 11560 | 8830 | 6520 | 4580 | 2960 | ||||
| Pe | 9.86 | 9.05 | 8.20 | 7.34 | 6.46 | 5.57 | 4.66 | 3.74 | 2.81 | |||||
| 50 | Qo | 18350 | 14790 | 11710 | 9070 | 6800 | 4880 | 3260 | ||||||
| Pe | 9.74 | 8.71 | 7.68 | 6.65 | 5.61 | 4.55 | 3.46 | |||||||
| 4YG-12.2 | 30 | Qo | 51500 | 47200 | 39450 | 32750 | 26900 | 21900 | 17550 | 13830 | 10650 | 7960 | 5700 | |
| Pe | 8.63 | 8.63 | 8.49 | 8.22 | 7.81 | 7.29 | 6.68 | 6.00 | 5.26 | 4.48 | 3.68 | |||
| 40 | Qo | 43500 | 39850 | 33300 | 27550 | 22600 | 18260 | 14530 | 11320 | 8590 | 6270 | 4320 | ||
| Pe | 10.66 | 10.47 | 9.99 | 9.40 | 8.72 | 7.96 | 7.15 | 6.29 | 5.40 | 4.51 | 3.62 | |||
| 50 | Qo | 35400 | 32400 | 27050 | 22350 | 18230 | 14650 | 11550 | 8880 | 6590 | 4650 | 3020 | ||
| Pe | 12.28 | 11.93 | 11.17 | 10.33 | 9.42 | 8.45 | 7.45 | 6.42 | 5.39 | 4.36 | 3.36 | |||
| 4YD-10.2 | 30 | Qo | 38300 | 31600 | 25750 | 20700 | 16390 | 12690 | 9550 | 6910 | 4690 | |||
| Pe | 10.07 | 9.37 | 8.64 | 7.87 | 7.06 | 6.22 | 5.34 | 4.43 | 3.48 | |||||
| 40 | Qo | 32300 | 26500 | 21500 | 17130 | 13400 | 10220 | 7520 | 5240 | 3350 | ||||
| Pe | 11.39 | 10.45 | 9.47 | 8.45 | 7.41 | 6.35 | 5.30 | 4.25 | 3.22 | |||||
| 50 | Qo | 21500 | 17290 | 13660 | 10550 | 7890 | 5640 | 3760 | ||||||
| Pe | 11.26 | 10.04 | 8.80 | 7.53 | 6.28 | 5.05 | 3.88 | |||||||
| 4YG-15.2 | 30 | Qo | 61500 | 56400 | 47100 | 39050 | 32100 | 26000 | 20800 | 16320 | 12490 | 9240 | 6500 | |
| Pe | 10.23 | 10.19 | 9.96 | 9.58 | 9.06 | 8.43 | 7.70 | 6.90 | 6.04 | 5.14 | 4.23 | |||
| 40 | Qo | 52200 | 47850 | 39950 | 33050 | 27050 | 21850 | 17360 | 13490 | 10190 | 7390 | 5020 | ||
| Pe | 12.41 | 12.14 | 11.51 | 10.79 | 9.99 | 9.11 | 8.18 | 7.19 | 6.17 | 5.13 | 4.07 | |||
| 50 | Qo | 42600 | 39000 | 32500 | 26750 | 21800 | 17430 | 13680 | 10460 | 7710 | 5380 | 3420 | ||
| Pe | 14.27 | 13.78 | 12.78 | 11.73 | 10.66 | 9.55 | 8.43 | 7.28 | 6.11 | 4.94 | 3.75 | |||
| 4YD-12.2 | 30 | Qo | 44000 | 36250 | 29550 | 23750 | 18810 | 14580 | 11000 | 7980 | 5470 | |||
| Pe | 11.88 | 11.15 | 10.30 | 9.35 | 8.35 | 7.30 | 6.23 | 5.19 | 4.18 | |||||
| 40 | Qo | 37300 | 30600 | 24800 | 19810 | 15510 | 11840 | 8740 | 6120 | 3950 | ||||
| Pe | 13.39 | 12.33 | 11.18 | 9.97 | 8.71 | 7.44 | 6.19 | 4.99 | 3.87 | |||||
| 50 | Qo | 24850 | 20000 | 15820 | 12210 | 9120 | 6510 | 4300 | ||||||
| Pe | 13.28 | 11.83 | 10.37 | 8.91 | 7.45 | 6.01 | 4.60 | |||||||
| 4YG-20.2 | 30 | Qo | 71000 | 65100 | 54500 | 45250 | 37200 | 30250 | 24250 | 19070 | 14640 | 10860 | 7660 | |
| Pe | 12.24 | 12.20 | 11.94 | 11.47 | 10.82 | 10.04 | 9.14 | 8.16 | 7.12 | 6.07 | 5.02 | |||
| 40 | Qo | 60500 | 55400 | 46250 | 38200 | 31250 | 25200 | 20000 | 15530 | 11730 | 8510 | 5820 | ||
| Pe | 14.78 | 14.49 | 13.79 | 12.91 | 11.91 | 10.80 | 9.62 | 8.40 | 7.16 | 5.95 | 4.78 | |||
| 50 | Qo | 49900 | 45650 | 37900 | 31100 | 25250 | 20150 | 15760 | 12010 | 8840 | 6180 | 3980 | ||
| Pe | 16.78 | 16.28 | 15.18 | 13.95 | 12.63 | 11.24 | 9.81 | 8.38 | 6.97 | 5.63 | 4.37 | |||
Based on 20℃ suction gas temperature,50Hz,without liquid subcooling.
Additional cooling or limited suction gas temperature.
Additional cooling and CIC system.
The compressor has a nominal power range of 8–20HP (corresponding to 5.9–14.7kW), with specific models (e.g., 4YD-8.2, 4YG-20.2) covering different power levels in this range.
It supports four common refrigerants for low/mid-temperature refrigeration:
• R404A
• R507A
• R134A
• R22
Multiple standard and customized power supply configurations are offered:
• 220~240V/50Hz/3Ph
• 380~420V/50Hz/3Ph
• 440~480V/60Hz/3Ph
• Dual-power-supply customized motor (on request)
It is designed for industrial-scale cooling needs, mainly including two core scenarios:
1. Large-Scale Cold Storage & Warehousing: Powers walk-in freezers and 1,000–5,000㎡ bulk cold storage (for frozen meats, seafood, agricultural products), maintaining temperatures as low as -45°C (with R404A/R507A). It also supports multi-compressor parallel systems for food/pharmaceutical distribution centers.
2. Industrial Manufacturing & Commercial Freezing: Cools machinery in plastic extrusion, chemical production, and electronics manufacturing (5.5–15kW cooling capacity); drives large frozen food islands in hypermarkets and industrial ice-making machines.
The compressor has a service life of 15+ years, guaranteed by three key designs:
• Forced-Lubrication System: Ensures continuous oil supply to critical components (crankshaft, bearings) under high loads, reducing wear.
• Semi-Hermetic Sealing: Integral motor-compressor casting eliminates shaft seals, minimizing refrigerant leakage (≤0.1% annual leakage rate).
• Wear-Resistant Components: Chrome-plated piston rings, hardened alloy steel crankshafts, and imported impact-resistant spring steel valve reeds withstand high pressure and frequent cycling.
